Beacon 800 Eight Channel Controller for Fixed Gas Detection Systems

Beacon 800 Controller

Beacon 800 Gas Detection Control Panel

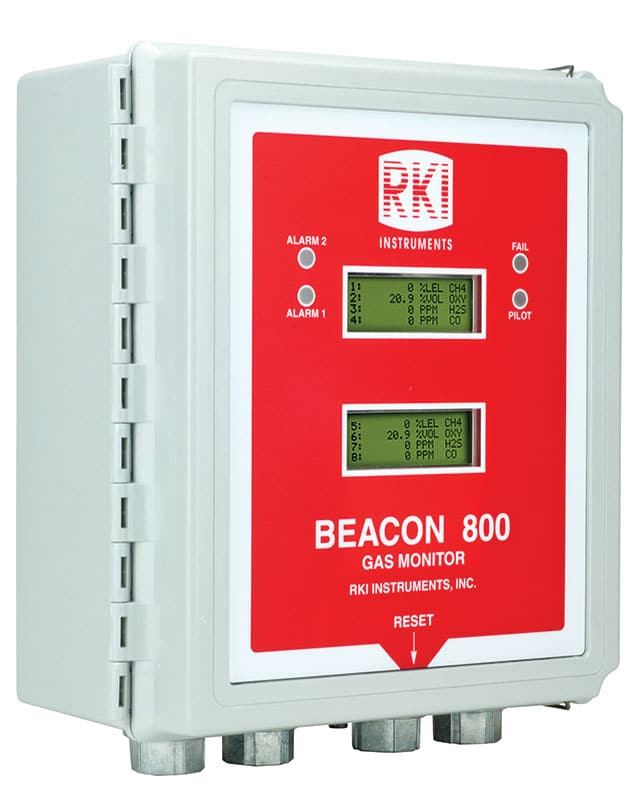

Beacon 800 Eight Channel Wall Mount Controller

Features

  • Capable of up to 8 separate channels
  • Digital display of all 8 channels simultaneously
  • Compact, weatherproof, NEMA 4X enclosure
  • 85 to 264 VAC or 24 VDC operation
  • Long life sensors (2+ years typical)
  • Accepts any 4-20 mA transmitter
  • Audible alarm with reset button
  • Two programmable alarm levels per channel
  • Common alarm and fail relays
  • Relay rating 3 amps, form C
  • Low cost versatile solution
Contact Sales

Overview

Gas detection should not be complicated. The Beaconª 800 is gas detection simplified.

The Beaconª 800 is a versatile, low cost fixed system controller for one to eight points of gas detection. It is microprocessor controlled and is capable of accepting up to 8 separate 4-20 mA sensor transmitters which can be either 2 or 3 wire. The Beaconª 800 can be powered by either 24 VDC, or 85-264 VAC. It is simple to operate and comes complete with a wall mount installation kit.

The 2 large digital displays have backlighting and easily identify both the gas type and the gas concentration for all 8 channels simultaneously. The Beaconª 800 is housed in a NEMA 4X rated case for a weather tight seal. This case design complies with lock out / tag out standards and can be fully secured. An external reset switch allows alarms to be silenced from outside the controller housing. The bottom mounted wiring hubs allow for easy wiring.

With 3 amp rated relays, the Beaconª 800 can be wired directly to a variety of devices like alarm horns, buzzers, or lights. This eliminates the need for costly external relays from the controller to devices. RKI offers the industry’s widest selection of standard and toxic gas detection sensors, which can be utilized with the Beaconª 800, providing gas monitoring protection for almost any application.

Related Services

Fixed Systems Turnkey Solutions

  • Design, Consultations, and Engineering
  • Installation
  • Start-up
  • Training
  • System Maintenance



Applications

  • Petrochemical plants
  • Refineries
  • Water & wastewater treatment pants
  • Pulp & paper mills
  • Gas, telephone, & electric utilities
  • Parking garages
  • Manufacturing facilities
  • Steel
  • Automotive
  • HVAC

Specifications

Physical

Dimensions Height: 12.5″ 318 mm
Width 11.0″ 279 mm
Depth 6.4″ 163 mm
Enclosure Wall mounting grey polycarbonate with hinged cover.
Conduit
Connection
3/4″ NPT conduit hubs, 4 provided for sensors, power and relay wiring.
Wiring
Termination
Screw type terminal block, 14 gauge max.

Environmental

Operating Temp -4°F to 122°F (-10°C to 50°C)
Storage Temp -4°F to 158°F (-20°C to 70°C)
Relative
Humidity
0 – 80% RH
Enclosure
Rating
NEMA-4X enclosure, waterproof, chemical, and weather resistant.

Inputs

4-20 mA Accepts any 4-20 mA transmitter (24 VDC, 2 or 3 wire). A wide variety of RKI sensors are available with4-20 mA signals. Wiring distances up to 8,000 feet.

Outputs

Relays 2 relays per channel 10 amp rating, SPDT isolated contacts.

1 set of common relays:

  • 2 for gas alarm levels
  • 1 for malfunction

Relays fully programmable for:

  • Increasing or decreasing alarms
  • Latching or self reset
  • Normally energized or normally de-energized
  • Time delay for alarm on and alarm off
Display 2 alphanumeric displays with backlighting. 16 characters per line; 4 lines each. All 8 channels continuously displayed.
Audible Built-in audible alarm, 94 dB steady tone, mounted on enclosure.
Visual 4 visual LED alarms on front cover for alarm indications, pilot, and malfunction.
Optional
Expansion Cards
Individual 4-20 mA (or 1 – 5 VDC) outputs
Heavy duty relay card (4 each @ 30 amps)

Power

85-264 VAC or 24 VDC standard
Battery backup option available

Approvals

CSA Certified to CSA C22.2 No. 1010 and ANSI/ISA S82.01

Warranty

One year materials and workmanship.
Partial List Of Detectable Gases
Many other gases or ranges available. Contact RKI for gases or ranges not listed.
Ammonia (NH3)
0 – 75.0 ppm
Arsine (AsH3 ) 0 – 0.20 ppm
Boron Trichloride (BCl3) 0 – 15.0 ppm
Carbon Dioxide (CO2) 0 – 1.0 %
Carbon Monoxide (CO) 0 – 300 ppm
Chlorine (Cl2) 0 – 3.0 ppm
Chlorine Dioxide (ClO2) 0 – 1.00 ppm
Chlorine Trifluoride (ClF3) 0 – 1.00 ppm
Combustibles (CH4) 0 -100% LEL
Diborane (B2H6) 0 – 30.0 ppm
Fluorine (F2) 0 – 6.0 ppm
Hydrogen (H2) 0 – 2000 ppm
Hydrogen Chloride (HCl) 0 – 15.0 ppm
Hydrogen Fluoride (HF) 0 – 9.0 ppm
Hydrogen Sulfide (H2S) 0 -100.0 ppm
Nitric Oxide (NO) 0 -100.0 ppm
Nitrogen Dioxide (NO2) 0 – 15.0 ppm
Nitrogen Trifluoride (NF3) 0 – 30.0 ppm
Oxygen (O2) 0 – 25.0 %
Ozone (O3) 0 – 1.0 ppm
Phosphine (PH3) 0 – 1.0 ppm
Silane (SiH4) 0 – 15.0 ppm
Sulfur Dioxide (SO2) 0 – 30.0 ppm
TEOS (Si(OC2H5)4) 0 -15/30 ppm

Specifications subject to change without notice.
Made in the USA
