Direct Connect Gas Sensors for LEL and Toxic Gas Detection by RKI

Direct Connect Gas Sensors

Fixed Gas Detection

Features

  • Available gases include
  • LEL, H2S, CO, & CO2
  • Toxic sensors include NH3, AsH3, Cl2, ClO2, HCN, & SO2
  • Infrared sensors for combustibles and CO2
  • Patented water repellent sensor coating
  • Explosion proof construction
  • Optional stainless steel junction box
Contact Sales

Overview

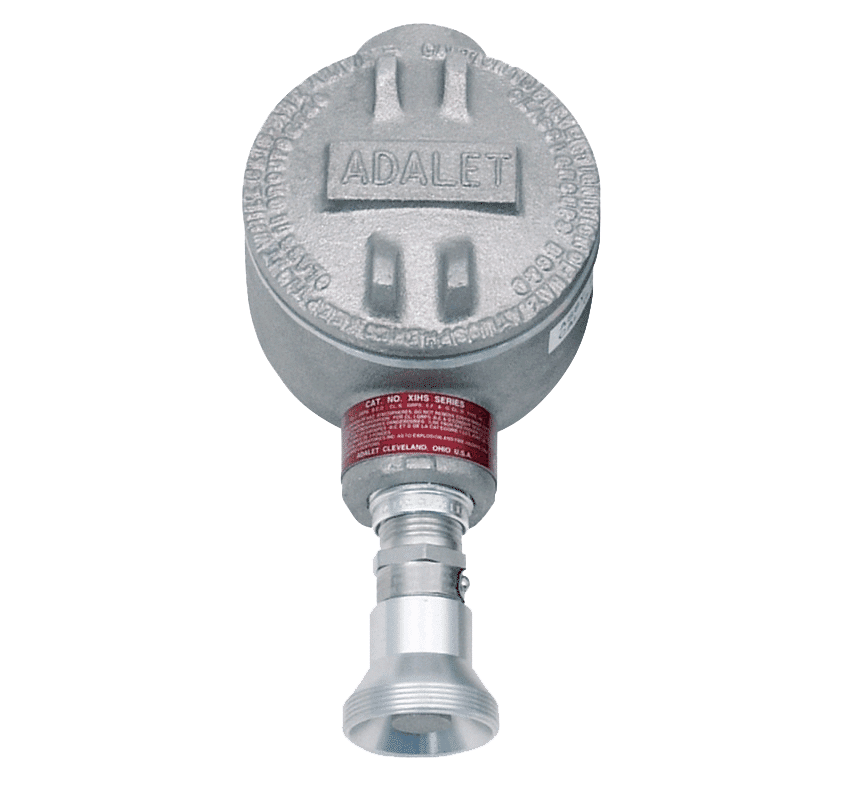

The RKI Direct Connect series gas sensors are highly reliable and very cost effective for the detection of common gas hazards. The direct connect series are available for LEL, H2 Specific LEL, LEL IR, Oxygen, H2S, CO, CO2, and for a variety of toxic gases. The sensors for LEL, H2, Oxygen, H2S, CO2, and Carbon Monoxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class 1, Div. 1 Groups B, C, D). An optional non-explosion proof version is available for oxygen, H2S, CO, and CO2 for use in Class 1 Div 2.

The Direct Connect sensors can be used in two different ways. The sensors can be mounted directly to the controllers as a complete stand alone system, or they can be mounted to explosion proof junction boxes for remote detection.

The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response, and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations. Sensors are available for NH3, AsH3, Cl2, ClO2, HCN, PH3, and SO2.

The Direct Connect sensors can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Also, splash guards are available for use in very wet environments. An optional stainless steel junction box is available for corrosive environments.

All of the Direct Connect sensors are designed to specifically interface with RKI Beacon 110, 200, and 410A controllers.

Related Services

Fixed Systems Turnkey Solutions

  • Design, Consultations, and Engineering
  • Installation
  • Start-up
  • Training
  • System Maintenance



Application

  • Petrochemical plants
  • Refineries
  • Gas plants
  • Offshore drilling platforms
  • Water & wastewater treatment plants
  • Pulp & paper mills
  • Gas, telephone, & electric utilities
  • Parking garages
  • Manufacturing facilities
  • Steel
  • Automotive

Specifications

Explosion Proof Class I, Div. 2 , Groups B, C, D

  LEL
General Purpose
LEL
H2 Specific
O2
Oxygen
H2S
Hydrogen Sulfide
CO
Carbon Monoxide
CH4
Methane
IR
HC Hydrocarbons
IR
CO2
Carbon Dioxide
IR
Sensor
With J-Box
61-1000RK (UL) 61-1001RK (UL) 65-2515RK 65-2427RK-05 65-2437RK-05 61-1003RK-CH4
61-1006RK-CH4
61-1003RK-HC 61-1004RK-02
61-1004RK-03
61-1004RK-05
61-1004RK-10
61-1000RK-05 (CSA) 61-1001RK-05 (CSA)
Sensors Catalytic Galvanic cell Electrochemical Infrared
Sensor
Only
61-0140RK (UL)
61-0140RK-05 (CSA)
LEL H2 – NC-6205-01 (UL)
NC-6205-05 (CSA)
65-2514RK 65-2428 65-2438 61-0190RK-CH4
61-0192RK-CH4
61-0190RK-HC 61-0191RK-02
61-0191RK-03
61-0191RK-05
61-0191RK-10
Measuring Range 0-100% LEL 0-25% Vol. 0-100 ppm 0-300 ppm 0-100% LEL
0-100% Vol.
0-100% LEL -02
-03
-05
-10
0 – 5000ppm
0 – 5.0%Vol.
0 – 50%Vol.
0 – 100%Vol.
Lower Detectable Limit (LDL) 2% of full scale 0.1% Vol. 2% of full scale
Response
Time (T-90)
LEL – 30 Seconds LEL H2 – 20 Seconds 90 Seconds 60 Seconds 90 Seconds 30 Seconds 30 Seconds 30 Seconds
Accuracy +/- 5% of full scale (0.5% volume for oxygen)
Life

Expectancy

2 to 3 years with normal service 3 to 5 years with normal service 2 to 3 years with normal service 5 years plus with normal service
Operating Environment
Location Indoor or outdoor. Explosion proof for Class I, Groups B, C, and D atmospheres.
Temperature -40°F to 167°F
-40°C to 75°C
-4°F to 113°F
-20°C to 45°C
-40°F to 104°F
-40°C to 40°C
23°F to 104°F
-5°C to 40°C
-40°F to 122°F
-40°C to 50°C
Humidity 0 – 99% RH non condensing
Housing
Housing J-Box Cast aluminum, explosion-proof. Optional stainless steel J-box available.
Sensor Stainless steel, explosion-proof
Approvals 61-1000RK UL 61-1001RK UL CSA NRTL C UL US
61-1000RK-05 CSA 61-1001RK-05 CSA
Controllers Compatible with the following controllers: Beacon 110, Beacon 200, and Beacon 410A
Warranty One year materials and workmanship

Toxic Gas Transmitters Class I, Div. 2

O2
Oxygen
H2S
Hydrogen Sulfide
CO
Carbon Monoxide
Toxics CO2
Carbon Dioxide
Sensor With J-Box 65-2497RK
*65-2502RK
65-2498RK 65-2499RK See Chart Below 61-1007RK-02
61-1007RK-03
61-1007RK-05
61-1007RK-10
Sensors Galvanic cell Electrochemical Infrared
Sensor Only 65-2494RK

*65-2510RK

65-2495RK 65-2496RK See Chart Below 61-0198RK-02
61-0198RK-03
61-0198RK-05
61-0198RK-10
Measuring Range 0-25% Vol. 0-100 ppm 0-300 ppm 0 – 5000ppm
0 – 5.0%Vol.
0 – 50%Vol.
0 – 100%Vol.
Lower Detectable Limit (LDL) 0.1% Vol. 2% of full scale
Response Time (T-90) 20 seconds or less 35 seconds or less 60 seconds or less 30 seconds or less
Accuracy +/- 5% of full scale (0.5% volume for oxygen)
Life Expectancy 2 years withnormal service 2 to 3 years with normal service 5 years plus with
normal service
Operating Environment
Location Indoor or outdoor, Class I, Div. 2
Temperature -4°F to 122°F
-20°C to 50°C
14°F to 104°F
-10°C to 40°C
-40°F to 122°F
-40°C to 50°C
Humidity 0 – 99% RH non condensing
Housing
Housing J-Box Cast aluminum, explosion-proof
Sensor Aluminum
Controllers Compatible with the following controllers: Beacon 110, Beacon 200, and Beacon 410A
Warranty One year materials and workmanship

S2 toxic sensor

Toxic Direct Connect Sensor Ordering Information

Part Number With J-Box Part Number Without J-box Gas Range Resolution Sensor type
65-2301RK-NH3 65-2300RK-NH3 Ammonia (NH3)* 0 – 75.0 ppm 0.1 ppm ESM -01
65-2303-NH3-75 65-2302-NH3-75 Ammonia (NH3) 0 – 75.0 ppm 0.1 ppm CT-7
65-2303-NH3-1 65-2302-NH3-1 Ammonia (NH3) 0 – 100 ppm 1 ppm CT-7
65-2303-NH3-2 65-2302-NH3-2 Ammonia (NH3) 0 – 200 ppm 1 ppm CT-7
65-2303-NH3-5 65-2302-NH3-5 Ammonia (NH3) 0 – 500 ppm 1 ppm CT-7
65-2301RK-AsH3 65-2300RK-AsH3 Arsine (AsH3) 0 – 1.50 ppm 0.01 ppm ESM -01
65-2303-CL2-3 65-2302-CL2-3 Chlorine (Cl2) 0 – 3.00 ppm 0.01 ppm CT-7
65-2303-CL2-10 65-2302-CL2-10 Chlorine (Cl2) 0 – 10.0 ppm 0.1 ppm CT-7
65-2303-CLO2-1 65-2302-CLO2-1 Chlorine Dioxide (ClO2) 0 – 1.00 ppm 0.01 ppm CT-7
65-2303-CLO2-3 65-2302-CLO2-3 Chlorine Dioxide (ClO2) 0 – 3.00 ppm 0.01 ppm CT-7
65-2303-CLO2-5 65-2302-CLO2-5 Chlorine Dioxide (ClO2) 0 – 5.00 ppm 0.01 ppm CT-7
65-2301RK-HCN 65-2300RK-HCN Hydrogen Cyanide (HCN) 0 – 15.0 ppm 0.1 ppm ESM -01
65-2301RK-PH3 65-2300RK-PH3 Phosphine (PH3) 0 – 1.00 ppm 0.01 ppm ESM -01
65-2301RK-SO2 65-2300RK-SO2 Sulfur Dioxide (SO2) 0 – 6.00 ppm 0.01 ppm ESM -01
* Sensor being phased out, use CT-7 type when possible.

Direct Connect Wiring Matrix

Sensor Number of Wires to Controller Maximum Distance to Controller
18 AWG wire min.
LEL / CO2 / IR 4 500 ft.
Oxygen 2 500 ft.
H2S 2 500 ft.
CO 2 500 ft.
Toxics 2 500 ft.

Specifications subject to change without notice.
Made in the USA
