Name: GP-03
Brand: RKI Instruments

Overview

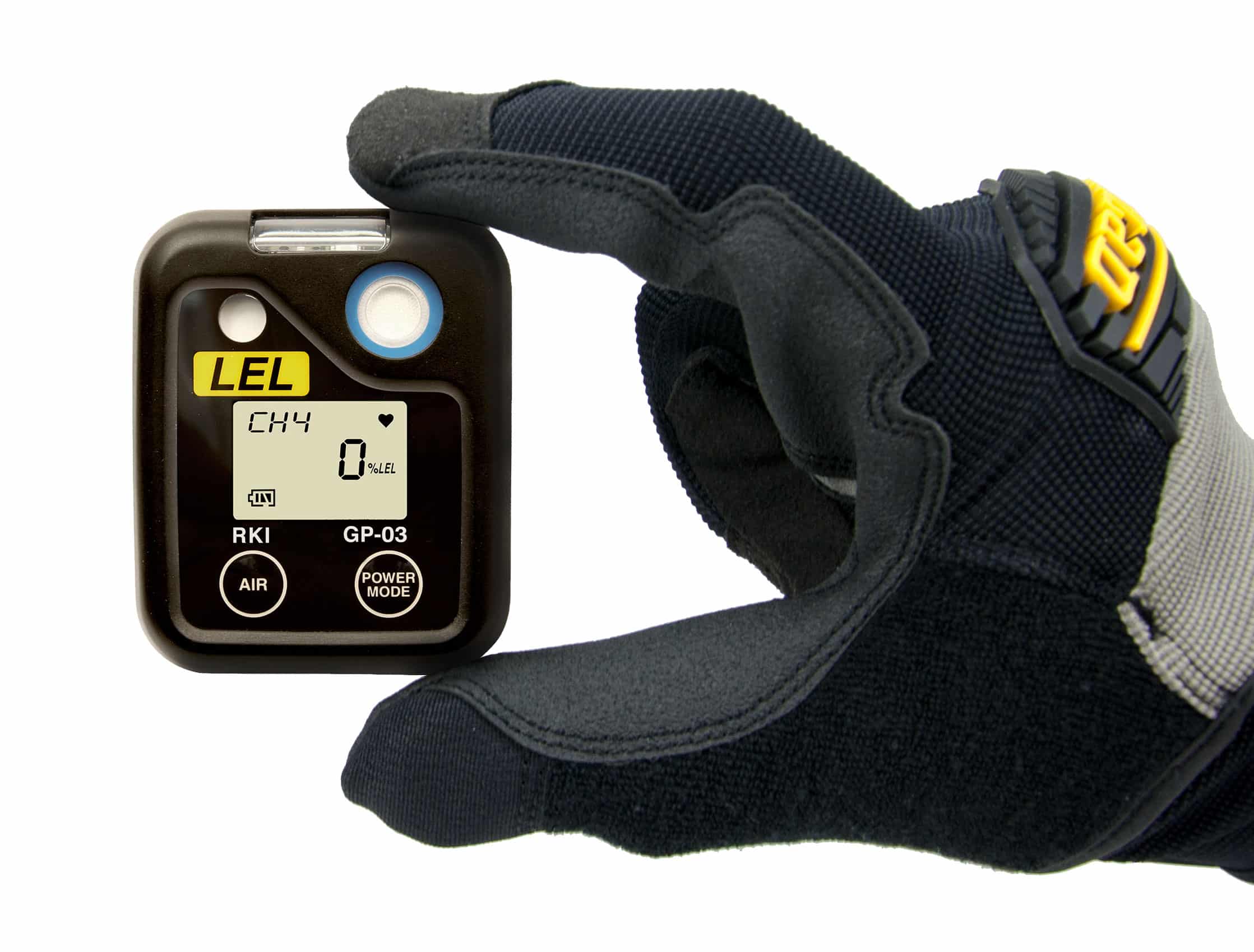

Individuals need personal protection in hazardous areas at all times without adding extra bulky equipment, and the GP-03 can provide that kind of protection at an affordable price. The GP-03 is a personal single gas monitor designed for protection from exposure to combustible hydrocarbons.

The GP-03 operates for 35 hours on alkaline and 30 hours on rechargeable Ni-MH. The GP-03 model has 2 preset alarms that are user adjustable. It is also equipped with visual, audible, and vibration alarms as standard. The replacement sensor is inexpensive, easily field replaceable, and is interchangeable with other popular RKI instruments like the GX-2009 and GX-2012. The LEL sensor has a life expectancy of over 2 years.

The GP-03 is impact, dust, and water resistant with an IP-67 rating. The GP-03 is safe for use in hazardous locations, classified as intrinsically safe ATEX/IECEx and by CSA to U.S. and Canadian standards for Class I, Division 1, Groups A, B, C, and D atmospheres.

Application

Hazardous Material
Mining
Refineries / Petrochemical
Utilities
Chemical Plants
Fire Services

Specifications

Model Name	GP-03
Gas Detected	Combustible gas
Detection Principle	Catalytic combustion
Detection Range (Increments)	0 – 100% LEL (1% LEL increments)
Alarm Set Points	1st 10% LEL 2nd 50% LEL Over 100% LEL
Alarm Types	Gas alarms: 1st and 2nd (user adjustable), OVER alarm, STEL and TWA Trouble alarms: Sensor connection, low battery circuit failure, and calibration range error
Alarm Methods	Gas alarm: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration Trouble alarm: Flashing LED’s, intermittent buzzer, and display of error message STEL & TWA alarms: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration
Gas Sampling	Diffusion
Response Time	T90 in 30 seconds
Accuracy (which ever is greater)	± 5% of reading or ± 2%
Data Logging	10 second intervals = 5 hours, 5 minute intervals = 150 hours, 10 minute intervals = 300 hours
Data Logging	Instrument records alarms, alarm trends, gas readings, calibration & bump test history, instrument information and settings.
Battery Options	Alkaline dry cell (2-AAA size) Ni-MH battery
Continuous Operation	Alkaline: 35 hours Ni-MH: 30 hours
Safety Rating	ATEX/IECEx approved. CSA classified, “C/US”, as intrinsically safe, Class I, Division 1, Groups A, B, C, D
Enclosure	Dust and water resistant with IP-67 rating
Dimensions & Weight	2.1” W x 2.64” H x 0.94” D, (54 x 67 x 24 mm); 2.8 ounces (80 g)
Display	Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon
Operating Temp. & Humidity	-4°F ~ 122°F (-20°C ~ 50°C); Humidity below 90% RH (non-condensing)
Standard Accessories	• Rubber protective boot • Alligator clip • Data logging software • Alkaline batteries • Wrist strap

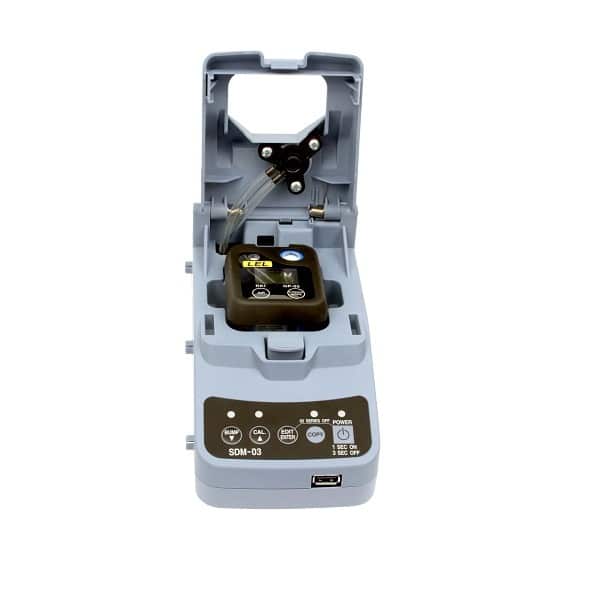

Optional Accessories	• Calibration cap • Charger unit • Wrist strap • Calibration station • Calibration kit • Belt clip • Data logging download cable
Special Functions	• Manual backlight for LCD (automatically lit during alarm) • Peak hold, STEL & TWA
Warranty	2 Year warranty

Parts

Part #	Description
ES-1821	CO sensor
ES-1827I	H2S sensor
NC-6264A	LEL sensor
OS-BM2	O2 sensor
07-6031	Gasket for battery lid
07-6032	Gasket between top case and bottom case
07-6033	Gasket for sensor
07-6034	Rubber sheet, Black,
10-1105-01	Cross-recessed pan head screw M2×8 SUSXM7
13-0112RK	Hand strap
13-0121	Alligator clip assembly with ring
13-0122	Belt clip
13-0204RK	Spring pin for clip
13-1116	Screw for battery lid
15-0500	Battery contact short
15-0501	Battery contact piece (-)
15-0502	Battery contact piece (+)
20-0325	Rubber protection cover, Black
21-1908	Battery lid
21-1909	Battery contact piece holder
21-1910	Bottom case (GP-03/OX-03)
21-1911	Bottom case (CO-03/HS-03)
21-1912	Top case
21-1913	Top case asssembly
29-0652	Panel sheet RKI version (GP-03)
29-0653	Panel sheet RKI version (OX-03)
29-0654	Panel sheet RKI version (CO-03)
29-0655	Panel sheet RKI version (HS-03)
29-6100	Water immersion sensing seal
30-1055	Vibration motor
33-0175	Hydrophobic filter for sensor
33-7106RK	H2S scrubber filter for CO sensor, strip of 5
49-1110RK	Alkaline battery AAA (2 required)
49-1312	Ni-MH battery AAA (2 required)
51-1130	LCD module
57-1282	Main PCB assembly (GP-03)
57-1283	Main PCB assembly (OX-03)
57-1284	Main PCB assembly (CO-03)
57-1285	Main PCB assembly (HS-03)
81-1146	Calibration adapter

Specifications subject to change without notice.

Training Video

This video is also available on YouTube and CD (by request)

Downloads

03 Series Software
Data Logger Management 30MB version 04710 PDF Manual	User Setup Program 4MB version 04713 PDF Manual
03 Series Literature
03-Series Product Datatsheet	03-Series Quick Reference Guide	03-Series Operator’s Manual
GP-03 Operator’s Manual	03 Series User Setup Program Operator’s Manual	03 Series Data Logger Management Program Manual
		HS-03 Quick Check Cylinder Supplement
