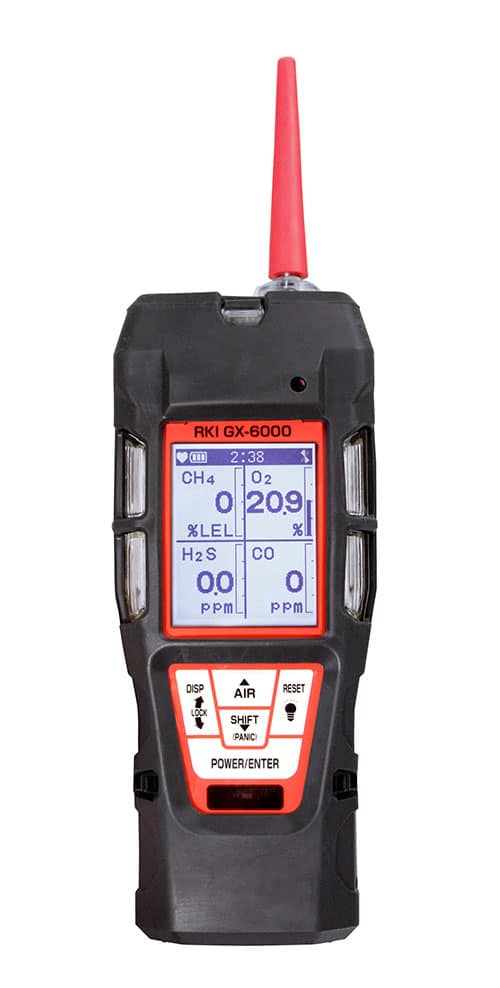

GX-6000

View 360 Image

Sample Draw with PID, IR, O2, CO, H2S, VOC and Super Toxic Sensor Options

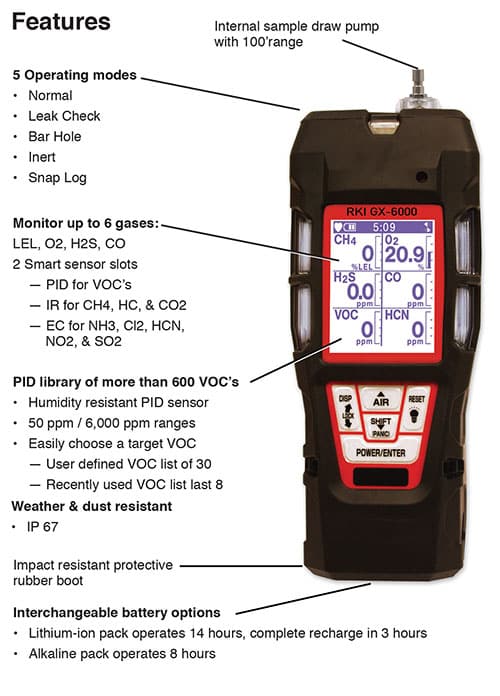

  • 5 Operating modes
  • Smallest 6 gas sample draw
  • 2 Interchangeable smart sensor slots
  • 4 PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps
  • PID library of over 600 VOCs — Easily switch target VOC from customizable user list or a recently used list
  • Benzene specific version
  • PPM Leak Check mode
  • LEL sensor protection mode
  • Man-down alarm
  • Panic alarm • Auto display rotation
  • Peak-bar display
  • LED Light source
  • Internal sample pump
  • Light weight, small, rugged IP-67
  • Interchangeable battery packs
  • Operates up to 14 hours
  • Field replaceable sensors, batteries, filters and pump
  • Intrinsically safe ATEX / IECEx / cCSAus
Contact Sales

Overview

The GX-6000 is a game changer. This powerful hand-held instrument is capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors. Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. Four PID sensors are available, 10.0 eV, 10.6 eV (low or high range), and 11.7 eV. Any combination of two PID sensors can be installed. GX-6000 PID sensors are also resistant to humidity.

The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed.

Sensors available: CL2, CO, CO2, HCN, H2S, NH3, NO2, PH3, SO2, and VOC (volatile organic compounds) Ammonia, Chlorine, Hydrogen Cyanide, Nitrogen Dioxide, Phosphine, Sulfur Dioxide, Carbon Dioxide, Methane, Hydrocarbon, Hydrogen Sulfide, Carbon Monoxide, and Oxygen Monitor.

6 Operating Modes

  • Normal Mode
  • Barhole Mode
  • Inert Mode
  • Leak Check
  • Snap Log Mode
  • Benzene Specific

Applications

  • Confined Space Entry
  • Hazmat Response Teams
  • Arson Investigation
  • Remediation Site
  • Perimeter Monitoring
  • Leak Detection
  • Landfill Monitoring
  • Winery Tank Entry

Specifications

Gases & Detectable Ranges

Gas Measuring Range Reading Increment Alarm Set Points Accuracy (which ever is greater)
PID Sensors
10.6 Lamp 600 VOC’s 0 – 50,000 ppb 1 ppb: (< 5000 ppb) 10 ppb: (> 5,000 ppb) A1: 5,000 ppb ± 10% of reading, ± 1 digit
A2: 10,000 ppb
0 – 6,000 ppm 0.1 ppm: (< 600 ppm) 1 ppm: (> 600 ppm) A1: 400 ppm
A2: 1,000 ppm
10.0 Lamp Benzene Specific 0.1 – 50 ppm 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm) No Alarms
300 VOC’s 0 – 100 ppm 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm) A1: 5 ppm A2: 10 ppm
11.7 Lamp High Voltage Lamp 0 – 1000 ppm 0.1 ppm A1: 400 ppm
A2: 1,000 ppm
Galvanic
Oxygen (O2) 0 – 40.0% Vol. 0.1% Vol. A1: 19.5 Vol. ± 0.5% O2
A2: 23.5 Vol.
Electro Chemical
Carbon Monoxide (CO) 0 – 500 ppm 1 ppm A1: 25 ppm ± 5% of reading or ± 5 ppm
A2: 50 ppm
TWA 25 ppm
STEL 200 ppm
Hydrogen Sulfide (H2S) 0 – 100.0 ppm 0.5 ppm A1: 5.0 ppm ± 5% of reading or ± 2 ppm
A2: 30.0 ppm
TWA 1.0 ppm
STEL 5.0 ppm
Toxics (EC Sensors)
Ammonia (NH3) 0 – 400.0 ppm 0.5 ppm A1: 25 ppm ± 10% of reading or ± 5% of full scale
A2: 50 ppm
Chlorine (Cl2) 0 – 10.00 ppm 0.05 ppm A1: 0.5 ppm
A2: 1.0 ppm
Hydrogen Cyanide (HCN) 0 – 15.0 ppm 0.1 ppm A1: 5 ppm
A2: 10 ppm
Nitrogen Dioxide (NO2) 0 – 20.00 ppm 0.05 ppm A1: 3 ppm
A2: 6 ppm
Phosphine 0 – 20.00 ppm 0.01 ppm A1: 0.30 ppm
A2: 1.00 ppm
Sulfur Dioxide (SO2) 0 – 99.90 ppm 0.05 ppm A1: 2 ppm
A2: 5 ppm
IR Sensors
Carbon Dioxide (CO2) 0 – 10,000 ppm 20 ppm A1: 5,000 ppm ± 5% of reading or ± 2% of full scale
TWA 5,000 ppm
0 – 10.00% Vol. 0.02% A1: 0.50% Vol
A2: 3.00% Vol
STEL 3.00% Vol
TWA 0.50% Vol
Methane (CH4) 0 – 100% LEL 0 – 100% Vol. 1% LEL/ 0.5% Vol A1: 10% LEL A2: 50% LEL
Hydrocarbons 0 – 100% LEL 0 – 30% Vol.
Catalytic
Hydrocarbons (CH4, std) 0 – 100% LEL 1% LEL A1: 10%LEL ± 5% of reading or ± 2% LEL
A2: 50%LEL

Common Specifications

Alarm Types Gas alarm Man-down Trouble
Low and high adjustable 1st – self reset 2nd – latching Low flow Sensor connection Low battery Circuit error Calibration range
Sample Method Sample draw pump, flow rate 0.45 LPM, 50 foot sample range
Display Digital LCD, autobacklight, peak bar display, auto display rotation, and customize order of gases
Audible Alarm 95 dB at 1 ft.
Languages English, Spanish, French, German, Italian, Japanese, Korean, Portuguese, Russian
Continuous Operation 14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)
Operating Temp. & Humidity -4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing
Dimensions 2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)
Case Material Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals Explosion proof: IECEx , ATEX , TIIS , cCSAus Explosion class :Ex ia IIC T4 Ga Others: CE Marking
  Standard Features 2 Smart sensors slots auto recognize sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode
Standard Accessories • Rubber boot • Belt clip • Hand strap • Tapper nozzle• Probe with hydrophobic & dust filter 3’ teflon lined hose • Benzene pre-filter tubes and holder (benzene versions)
Optional Accessories • SDM-6000 calibration station • Bundles with instrument carrying case and accessories • Flexible probes • Up to 50 foot sample hoses • Filter set • IrDA cable
Warranty Two years material (including sensors) and workmanship. One year for PID sensor (Two monthsfor 11.7 eV lamp)

Parts

GX-6000 Spare Parts callout

Part Number Description
07-6035 O-ring, P6 EPDM
07-6036 Gasket for top cover, EPDM Black
07-6037 Joint pump EPDM black
07-6038 Gasket for cover, EPDM black
07-6039 Joint pressure  sensor, EPDM black
07-6040 Gasket for sensor cover, EPDM black
07-6041 Gasket for sensor cap, Fluorine-contained rubber Black
07-6042 Gasket for BUD-6000, EPDM black
07-6043 Gasket for pump, EPDM black
10-1089 Screw, 2 x 4.5 SUS
10-1093RK Screw SUS304 M2x6
13-0112RK Hand strap
13-0123 Belt clip with screws
17-1031 Taper nozzle, red
20-0326 Rubber protect cover
21-1833RK Filter case assembly (GX-2012/6000/RP-2009)
21-1926, 1 ea 21-1926-01, 5 p LCD protection film 5 pcs/pack
21-1928 RKI Housing assembly for EX
21-1929 Protection case, L-1225L black
21-1930 Sensor case
21-1931 Sensor cover assembly
21-1932 Top case assembly
21-1933 RKI Body case assembly for EX
29-6100 Water immersion sensing seal 1 pack = 10 pcs
30-0022RK Pump RP-12 (GX-2012/6000/CO-FL1/RP- 2009)
30-1054RK Vibration motor,  A3BE-MT4
33-0159RK Teflon filter 1 pack = 10 pcs, PF-060 (GX-2003/2012/6000/RP-6 RP-2009/GP-1000)
33-0560RK PPB pellet for PIS-001 sensor
33-0562 HPPM pellet for PIS-002 sensor
33-1112RK Filter (Metal mesh) 1 pack = 10 pcs (GX-2003/2012/6000/RP-6 RP-2009)
33-7102RK Charcoal filter CF-1821-2 for CO sensor 1 pack = 5 pcs (GX-2009/2012/6000)
33-7114RK H2S scrubber filter CF-6264-8 for LEL sensor 1 pack = 5 pcs
47-4001 Connector with cable, MAIN to SENSOR
49-1050RK Silver oxide battery, SR616SW
49-1120 Alkaline  battery (AA size) TOSHIBA
49-1619 Lithium-ion battery unit BUL-6000
49-1620 Alkaline  battery unit, BUD-6000
49-2982-01 Battery charger unit BC-6000 (with AC adaptor)
51-1139 LCD module BTD-128160B-FBWB-G-G
51-1501RK PID lamp 10.6eV LA4SM600
57-1286 Main PCB assembly
DES-3311-1 DES-3311-1 CO2 0-5vol% Sensor
DES-3311-2 DES-3311-2 HC 0-100%LEL 0-30vol% Sensor
ES-1821 CO sensor Sensor
ES-1827I H2S sensor Sensor
ESS-03DH-HCN ESS-03DH HCN 0-15ppm Sensor
ESS-03DH-NO2 ESS-03DH NO2 0-9ppm Sensor
ESS-03DH-SO2 ESS-03DH SO2 0-6ppm Sensor
NC-6264A HC sensor Sensor
OS-BM2 O2 sensor Sensor
PID-001 PIS-001 Iso-buthylene 0-50000ppb Sensor
PID-002 PIS-002 Iso-buthylene 0-6000pm Sensor

Training Video

This video is also available on YouTube and CD (by request)
