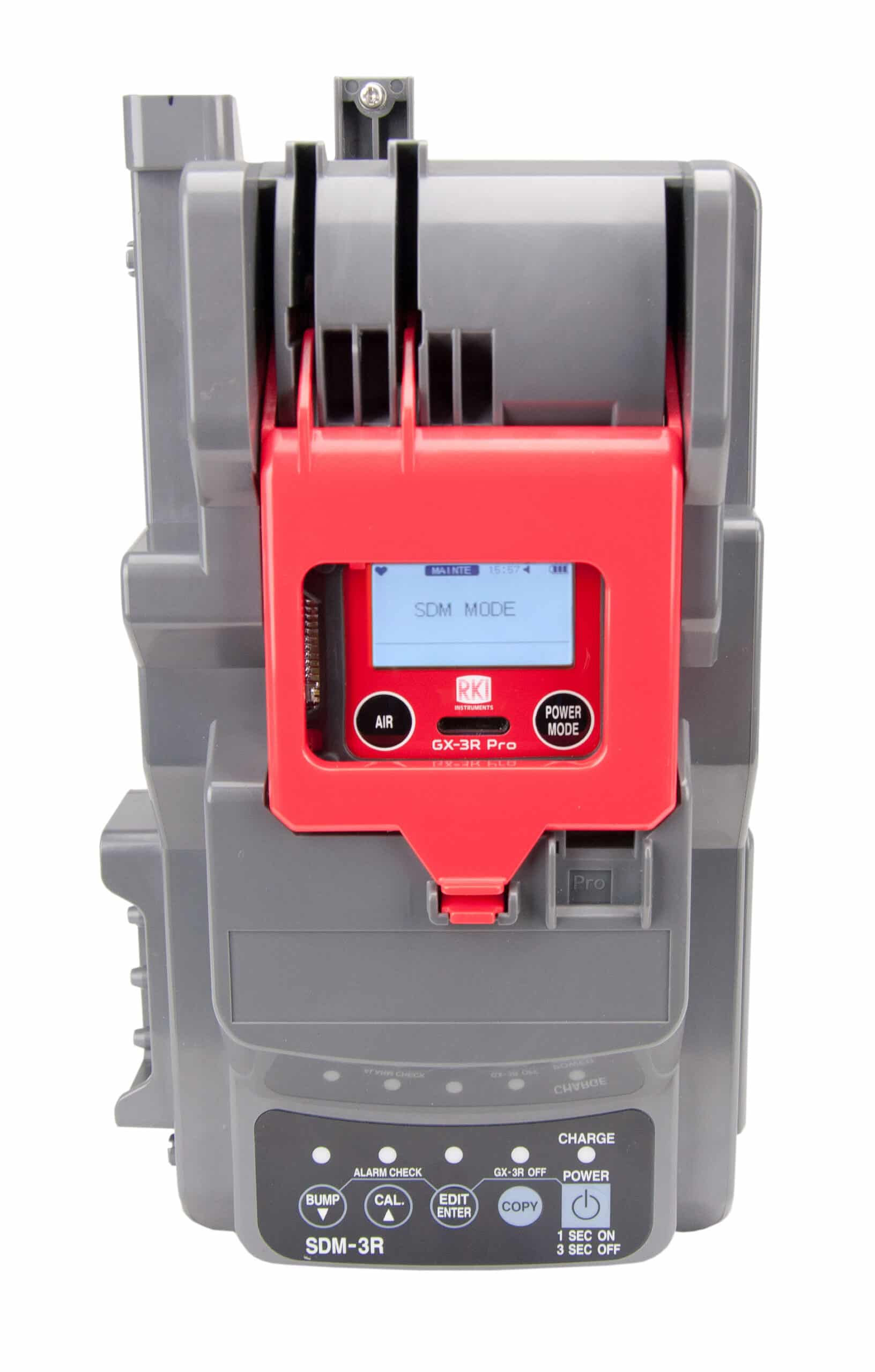

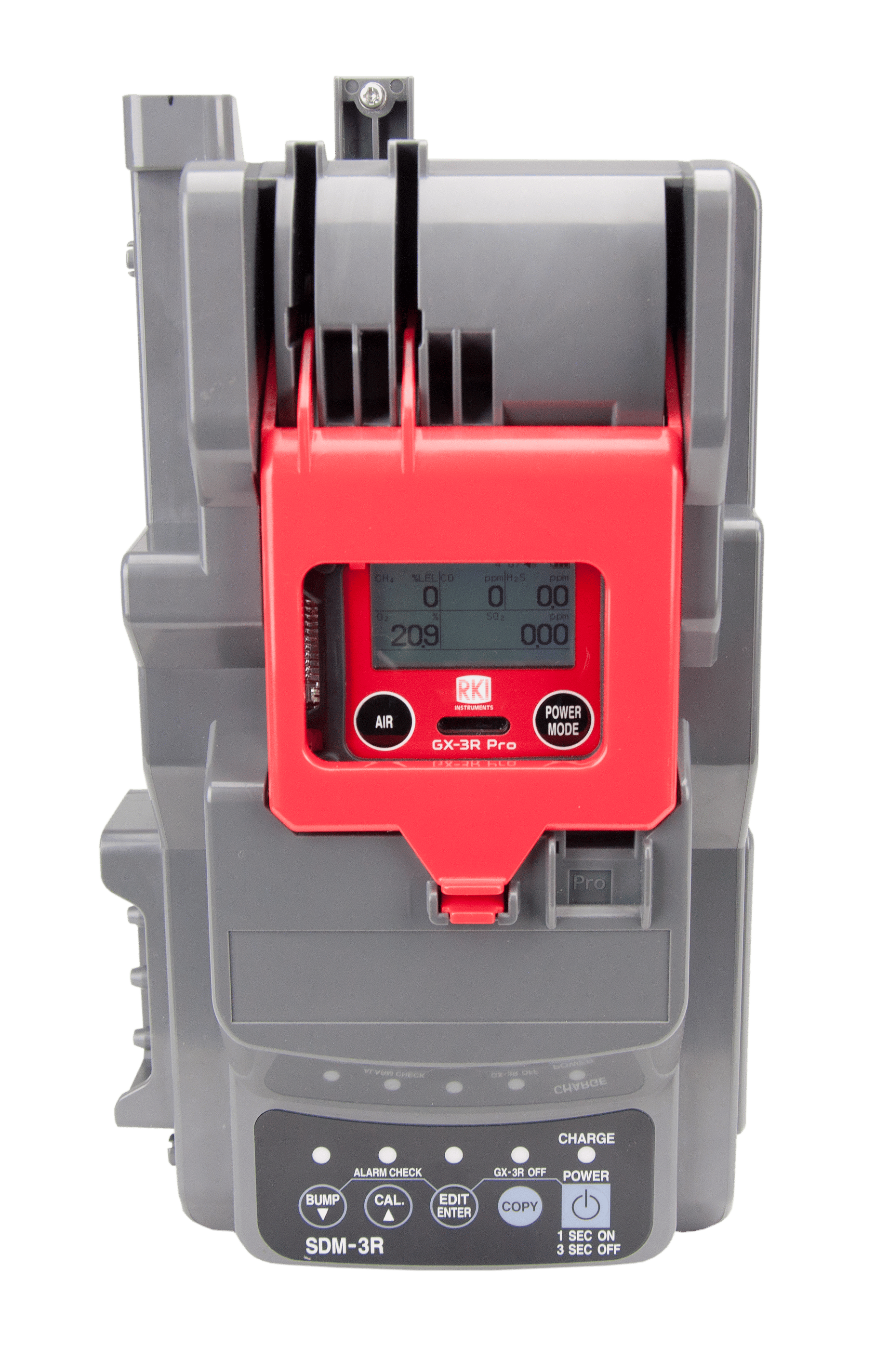

Calibration Station for the GX-3R (Pro)

Stand Alone Use (no PC required)

  • Compatible with both GX-3R and GX-3R Pro
  • Automatically charge, bump test, and/or calibrate
  • Auto on/off of gas detector
  • 3 separate gas inputs
  • Multiple modules (10 max) can use one set of calibration equipment
  • Save Bump Test, Calibration, and Alarm Check records to USB flash drive, computer, or network
  • Includes PC software for viewing/archiving bump test, calibration records, and event data

PC-Controlled Use

  • Multiple modules connected to a PC (10 max)
  • Automatic calibration/bump test option
  • Configure GX-3R (Pro) parameters
  • Archive Bump Test, Calibration, and Alarm Check
  • Archive data to network location
  • Software controlled data retrieval
  • Windows 7, 8, and 10 compatible
Contact Sales

Overview

Stand Alone Use
The SDM-3R is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled Use
Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with a USB cable. With the SDM Docking Station controller software, you can simultaneously calibrate, bump test, alarm check, archive data, or charge up to ten instruments. You can also download the datalogging history from each instrument into one easy to manage location. SDM-3R stations can be manifolded together to reduce the number of demand flow regulators gas cylinders required.

Specifications

Input Power AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard.
Environmental Conditions For Indoor Use Only

0° C to 40° C, below 95% Relative Humidity, Non-Condensing

Applicable Instruments GX-3R and GX-3R Pro
Maximum Number of

Records Saved

Stand Alone: 200 calibrations, or 214 bump test, or 469 alarm check records
PC program Controlled: Unlimited records
5 Ports 3 Calibration gas, 1 fresh air and 1 exhaust
Standard Accessories
  • AC Adapter
  • USB Flash Drive
  • Inlet Air Filter
  • 10 Foot Long Exhaust Tube
  • One 3 Foot Long Tube for GAS Fitting
  • USB Cable, Type A to Type B

Specifications subject to change without notice.

Features

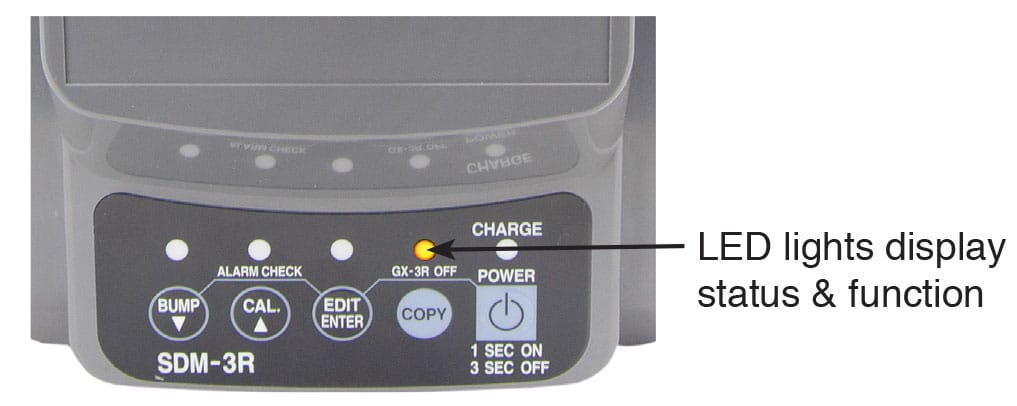

Control Panel View
control panel of sdm 3r

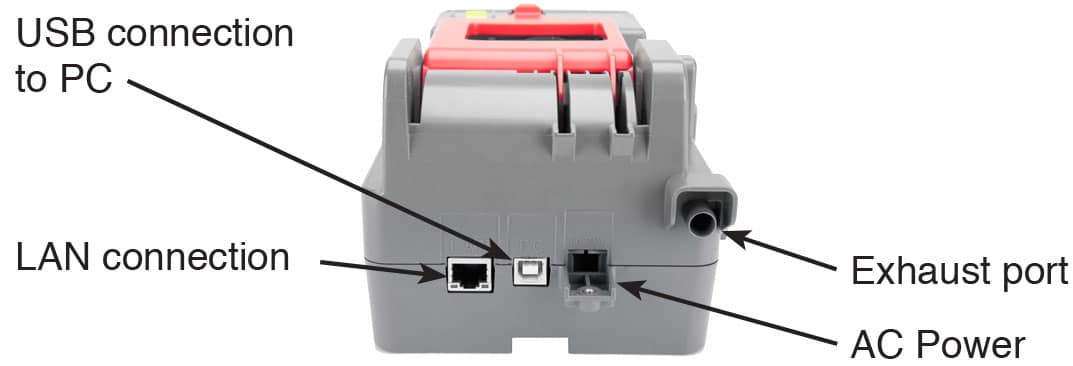

Back View
back view of sdm 3r

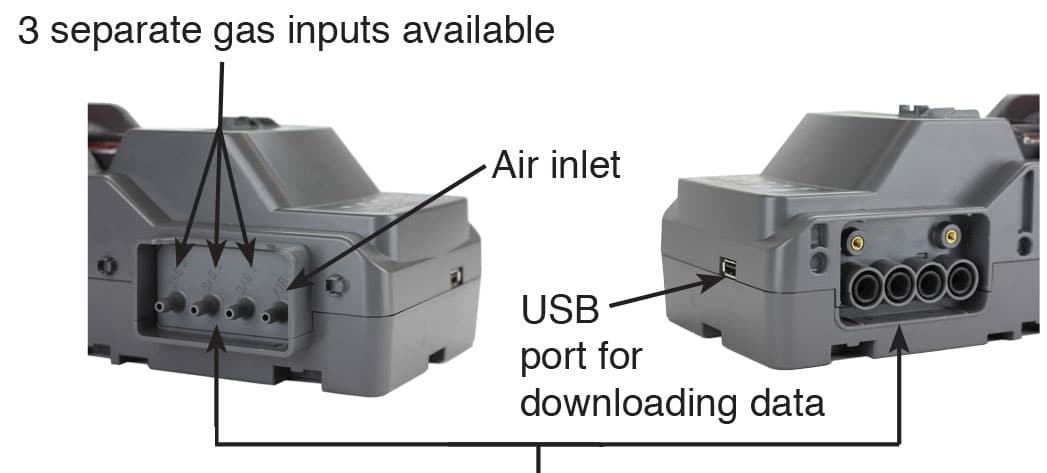

Side View
side view of sdm 3r

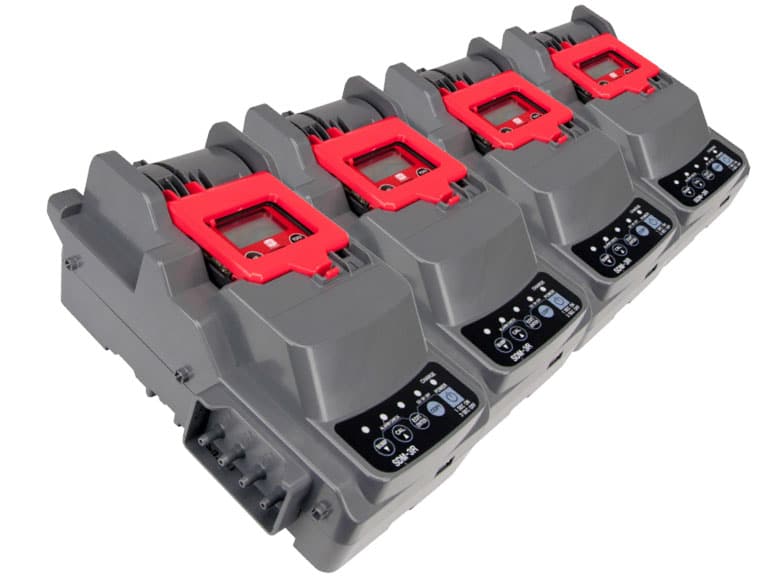

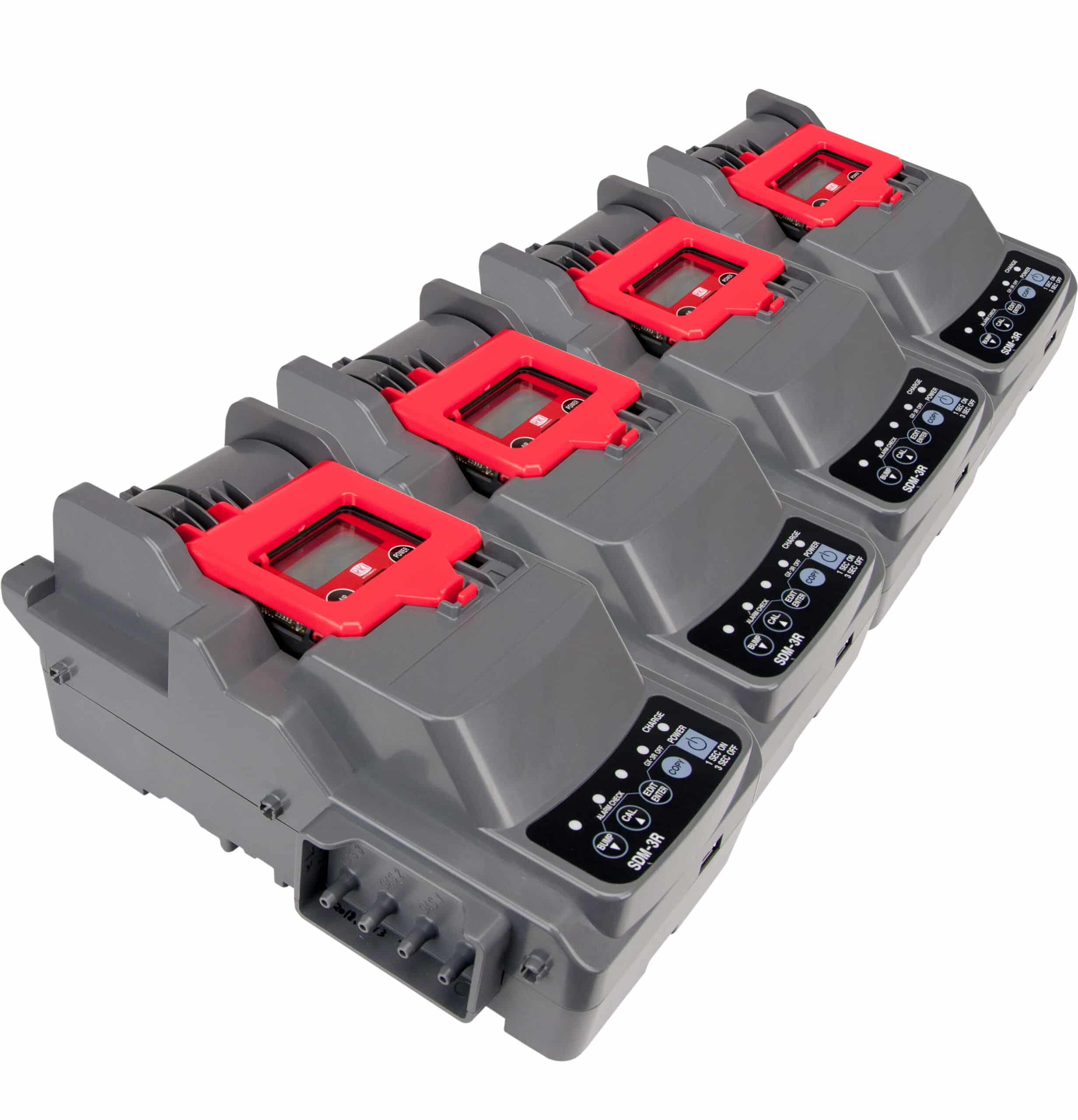

Modular Design for connecting up to 10 modules with easy snap together assembly using only one set of calibration equipment.
module of 4 sdm 3r

Specifications

Input Power

AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard.

Environmental Conditions

For Indoor Use Only
0° C to 40° C, below 95% Relative Humidity,
Non-Condensing

Applicable Instruments GX-3R and GX-3R Pro
Maximum Number of

Records Saved

Stand Alone: 200 calibrations, or 214 bump test, or 469 alarm check records

PC program Controlled: Unlimited records

5 Ports 3 Calibration gas, 1 fresh air and 1 exhaust
Standard Accessories
  • AC Adapter
  • USB Flash Drive
  • Inlet Air Filter
  • 10 Foot Long Exhaust Tube
  • One 3 Foot Long Tube for GAS Fitting
  • USB Cable, Type A to Type B
Warranty 1 year

Specifications subject to change without notice.

Ordering Info

Ordering Information

The SDM-3R can be ordered using the part numbers from the list below.

Docking Stations with 1 cylinder input
81-SDM3R101 SDM-3R calibration station with 1 solenoid , AC adapter, flash drive, USB cable, and tubing
81-SDM3R102 SDM-3R calibration station with 1 solenoid, demand flow regulator, AC adapter, flash drive, USB cable, and tubing
81-SDM3R103 SDM-3R calibration station with 1 solenoid, demand flow regulator, 58AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
81-SDM3R104 SDM-3R calibration station with 1 solenoid, demand flow regulator, 34AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
Docking Stations with 2 cylinder inputs
81-SDM3R201 SDM-3R calibration station with 2 solenoids, AC adapter, flash drive, USB cable, and tubing
81-SDM3R202 SDM-3R calibration station with 2 solenoids, demand flow regulator, AC adapter, flash drive, USB cable, and tubing
81-SDM3R203 SDM-3R calibration station with 2 solenoid, demand flow regulator, 58AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
81-SDM3R204 SDM-3R calibration station with 2 solenoid, demand flow regulator, 34AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
Docking Stations with 3 cylinder inputs
81-SDM3R301 SDM-3R calibration station with 3 solenoids, AC adapter, flash drive, USB cable, and tubing
81-SDM3R302 SDM-3R calibration station with 3 solenoids, demand flow regulator, AC adapter, flash drive, USB cable, and tubing
81-SDM3R303 SDM-3R calibration station with 3 solenoid, demand flow regulator, 58AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
81-SDM3R304 SDM-3R calibration station with 3 solenoid, demand flow regulator, 34AL cyl H2S/CO/CH4/O2, cylinder holder, AC adapter, flash drive, USB cable, and tubing
Bold features indicate differences between the various versions of the docking stations.
