GX-6000 Benzene Gas Detector

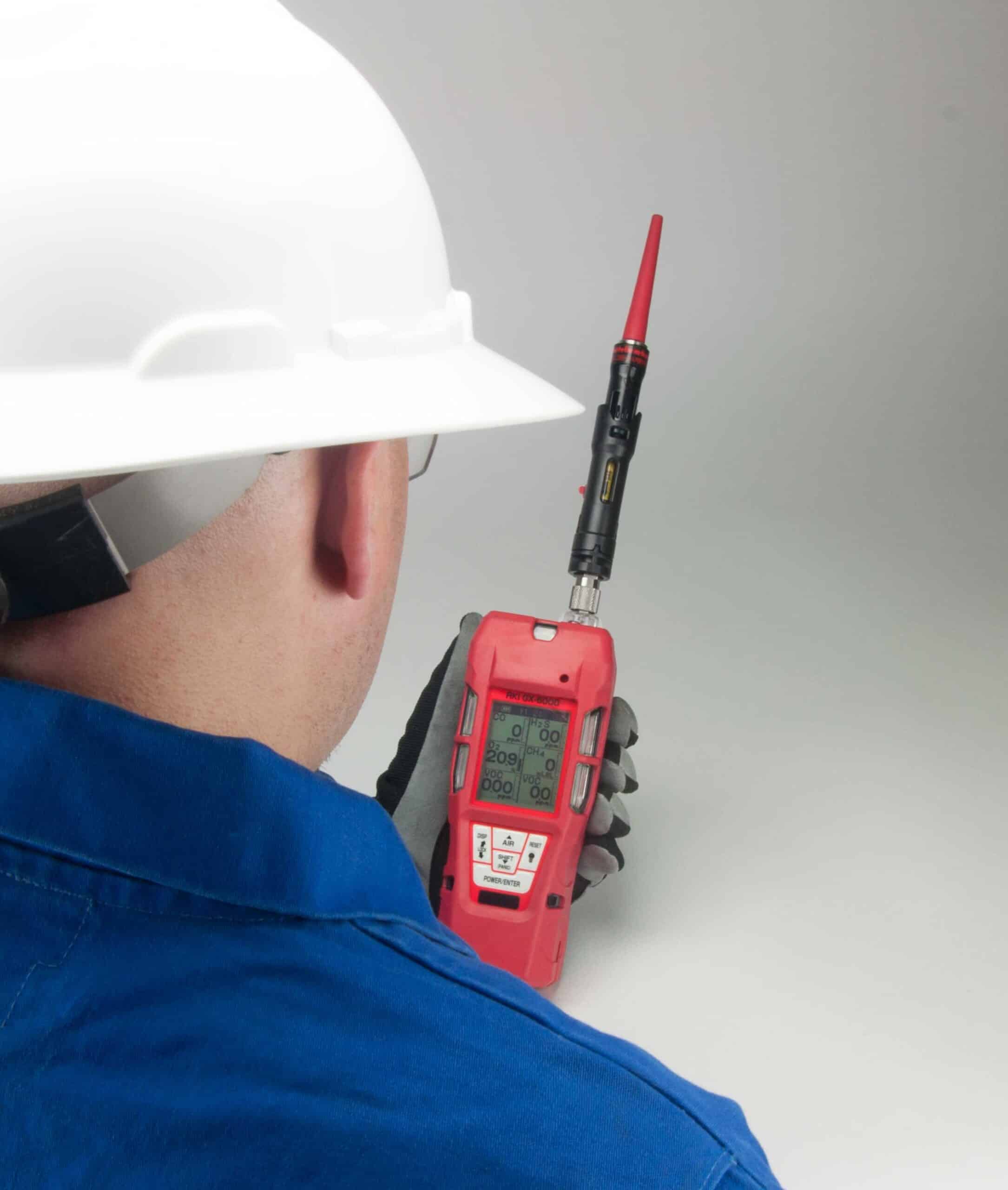

GX-6000 Benzene Specific PID 6 Gas Monitor in use

PID 6 Gas Portable Monitor

  • Benzene specific measurement
  • Benzene Select Mode takes timed samples using pre-filter tube

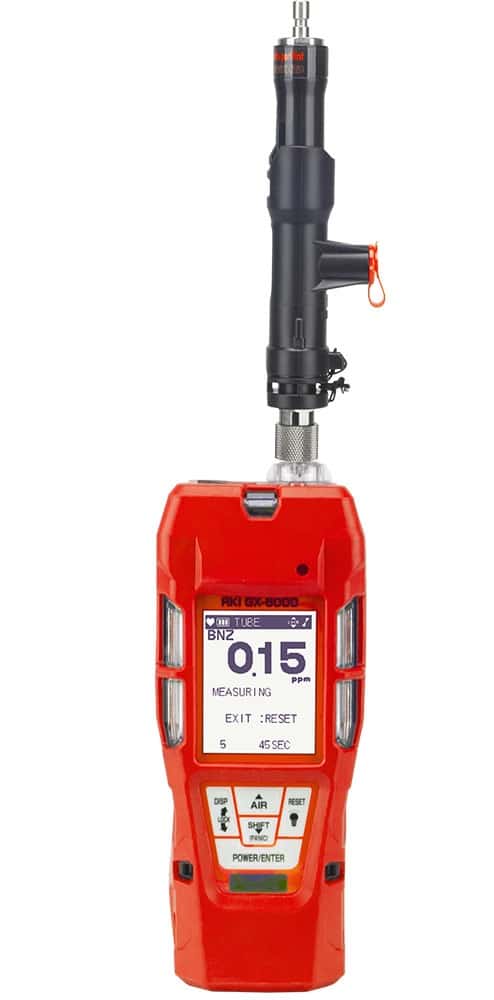

  • Benzene Filter Tube Holder
  • Long break through times for Benzene filter tubes
  • 6 Operating modes
  • Smallest 6 gas sample draw
  • 2 Interchangeable smart sensor slots
  • 2 PID options: 10.6 & 10.0 eV lamps
  • PID library of over 600 VOC’s
  • Benzene specific version
  • PPM Leak Check mode
  • LEL sensor protection mode
  • Man-down alarm
  • Panic alarm
  • Auto display rotation
  • LED Light source
  • Internal sample pump
  • Light weight, small, rugged IP-67 design
  • Interchangeable battery packs (Li-ion / alkaline)
  • Operates up to 14 hours on Li-ion battery pack, fully recharges in 3 hours; 8 hours operation with alkaline pack
Contact Sales

Overview

The GX-6000 Benzene Detector is a game changer and it just changed the game again with the Benzene Specific measuring mode. With the addition of the highly selective 10.0 eV PID sensor, the GX-6000 can now detect the BTEX family of VOC’s including benzene, toluene, ethylbenzene, and xylene with a range of 0 – 100 ppm and a library of over 300 VOC’s. By using the PID pre-filter tubes and the filter tube holder, the GX-6000 can specifically monitor for benzene at a range of 0.01 – 50 ppm by filtering out all other VOC’s. The filter tube holder has a unique break away design to avoid accidental damage if impacted or dropped. The filter tube holder also includes a safe and convenient glass breaker for the filter tube tips.

The GX-6000 has two PID sensors availabe, a 10.6 eV and a 10.0 eV, to use on either of it’s two smart sensor slots. The GX-6000 is the only PID instrument on the market with the ability to have two PID sensors functioning in one instrument. Use the broad range 10.6 eV PID sensor for a broad range of preliminary investigation, then switch to benzene mode for a highly specific measurement.

Selecting among the hundreds of VOC target gases is simple. Use the GX-6000’s user defined list to create a custom list of up to 30 commonly used target gases, or simply use the recently used list, which holds the 8 most recent target VOC in it’s memory. Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display. This specific GX-6000 model comes with a library of over 600 VOC gases to choose from as standard. GX 6000,  GX6000.

Applications:

  • Petroleum / Oil refining

  • Chemical manufacturing

  • Rubber & Tire manufacturing

  • Coke & Coal manufacturing

  • Fuel Storage & Tank Farms

  • Hazmat response teams

Applications

  • Petroleum / Oil refining

  • Chemical manufacturing

  • Rubber & Tire manufacturing

  • Coke & Coal manufacturing

  • Fuel Storage & Tank Farms

  • Hazmat response teams

Specifications

Gas Measuring Range Minimum Display Alarm Set Points Accuracy
* Which ever is greater

PID Sensors

10.6 PID Lamp
600
VOC’s
0 – 50,000 ppb 1 ppb
(< 5000 ppb)
10 ppb
(> 5,000 ppb)
A1: 5,000 ppb ± 10% of reading, ± 1 digit
A2: 10,000 ppb
0 – 4,000 ppm 0.1 ppm
(< 600 ppm)
1 ppm
(> 600 ppm)
A1: 400 ppm
A2: 1,000 ppm
10.0 PID Lamp

Benzene Specific No Alarms
300 VOC’s 0 – 100 ppm

Benzene Specific
0.1 – 50 ppm
0.01 ppm (0 ~ 10 ppm)
0.1 ppm (10 ~ 50 ppm)
no alarms
300 VOC’s
0 – 100 ppm
0.01 ppm (0 ~ 10 ppm)
0.1 ppm (10 ~ 100 ppm)
A1: 5 ppm
A2: 10 ppm

Catalytic

Hydrocarbons (CH4, std) 0 – 100% LEL 1% LEL A1: 10%LEL ± 5% of
reading or ± 2% LEL (*)
A2: 50%LEL

Galvanic

Oxygen (O2) 0 – 40% Vol. 0.1% Vol. A1: 19.5 Vol. ± 0.5% O2
A2: 23.5 Vol.

Electro Chemical

Carbon Monoxide (CO) 0 – 500 ppm 1 ppm A1: 25 ppm ± 5% of reading or ± 5 ppm
A2: 50 ppm
TWA 25 ppm
STEL 200 ppm
Hydrogen Sulfide (H2S) 0 – 100 ppm 0.5 ppm A1: 5.0 ppm ± 5% of reading or± 2 ppm
A2: 30.0 ppm
TWA 1.0 ppm
STEL 5.0 ppm

Toxics (EC Sensors)

Ammonia (NH3)* 0 – 75 ppm

0 – 400 ppm

0.5 ppm

5 ppm

A1: 25 ppm ± 10% of reading or ± 5% of full scale (*)
A2: 50 ppm
Chlorine (Cl2)* 0 – 3 ppm

0 – 10 ppm

0.05 ppm

0.1 ppm

A1: 0.5 ppm
A2: 1.0 ppm
Hydrogen Cyanide (HCN) 0 – 15 ppm 0.1 ppm A1: 5 ppm
A2: 10 ppm
Nitrogen Dioxide (NO2) 0 – 20 ppm 0.05 ppm A1: 3 ppm
A2: 6 ppm
Sulfur Dioxide (SO2) 0 – 100 ppm A1: 2 ppm
A2: 5 ppm
* Available Feb 2016

IR Sensors

Carbon Dioxide (CO2)



0 – 10% vol 25 ppm 0.2% A1: 5,000 ppm ± 5% of reading or ± 2% of full scale (*)
TWA 5,000 ppm
STEL 10,000
Methane (CH4)* 0 – 100% LEL/

0 – 100% Vol.

Vol. 1% LEL /
0.5% Vol
A1: 10% LEL
Hydrocarbons** 0 – 100% LEL/
0 – 30% Vol.
A2: 50% LEL
** Available January 2016,
* Available April 2016

Common Specifications

Alarm Types Gas alarm Man-down Trouble
Low and high adjustable 1st – self reset

2nd – latching

Low flow

Sensor connection

Low battery

Circuit error

Calibration range



Sample Method Sample draw pump, flow rate 0.45 LPM, 50 foot sample range
Display Digital LCD, autobacklite, peak bar display, auto display rotation, and customize order of gases
Audible Alarm 95 dB at 1 ft.
Languages English, German, Japanese, Korean, Russian
Continuous
Operation *
14 hours on Lithium-ion battery pack. Complete recharge in 3 hours.

8 hours Alkaline battery pack (3 AA size within each pack)

Operating Temp.
& Humidity
-4°F to 122°F (-20°C ~ +50?), 0- 95% RH non condensing
Dimensions / Weight 2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm)
14 ounce (400g) (with lithium battery pack)
Case Material Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design /

Approvals

Explosion proof: IECEx , ATEX , TIIS , CSA, Explosion class :Ex ia IIC T4 Ga Others: CE Marking


Standard
Features

  • 2 Smart sensors slots auto recognize sensor changes
  • Library of over 600 VOC’s
  • User defined VOC list. Up to 30 frequently used
  • Recent VOC list for last 8 selected gases
  • Pump and circuit status indicators
  • User & station ID selection menu
  • Datalogging (interval, alarm trend, station and user ID)
  • Snap logging – on demand data logging
  • Demand zero / Auto zero
  • BUMP and CAL expiration alarm
  • Flashlight
  • IrDA communication
  • LEL sensor protection mode
Standard
Accessories
  • Rubber boot
  • Belt clip
  • Hand strap
  • Tapered nozzle
  • Probe with hydrphobic filter and 3’ teflon lined hose
Optional
Accessories
  • Lithium-ion battery pack & charger / alkaline battery charger
  • Filter set • IrDA cable
Warranty Two years material (including sensors*) and workmanship. * One year for Cl2 and PID sensor

PID Sensor Response Factors for VOCs

Photoionization detectors are calibrated using isobutylene, but PID is a broadband VOC detection technique, with a sensitivity that differs for each VOC. If you know what VOC you are detecting, then the table below will allow you to calculate the concentration for your specific VOC. Remember, these are approximate values, so for best accuracy you should calibrate with the relevant VOC. Multiply the indicated concentration by the appropriate Relative Response value to provide an estimate of actual VOC concentration.

Chemical Name


Formula


CAS no.


lE, eV


11.7 eV


10.6 eV


10.0 eV


Acenaphthalene


C12H8


208-96-8


8.12



0.7



Acenaphthene


C12H10


83-32-9


7.80



0.7



Acetaldehyde


C2H4O


75-07-0


10.23


2


6


ZR


Acetamide


C2H5NO


60-35-5


9.69


NA


2


NA


Acetic acid


C2H4O2


64-19-7


10.66


4


28


ZR


Acetic anhydride


C4H6O3


108-24-7


10.14


2


4


NA


Acetoin


C4H8O2


513-86-0


~9.8


1.6


1.4


2.0


Acetone


C3H6O


67-64-1


9.69


1.7


1.17


1.20


Acetone cyanohydrin


C4H7NO


75-86-5


11.09


1


ZR


ZR


Acetonitrile


CH3CN


75-05-8


12.20


ZR


ZR


ZR


Acetophenone


C8H8O


98-86-2


9.29


0.8


0.8


0.8


Acetyl bromide


C2H3BrO


506-96-7


10.24


1.5


8.0


ZR


Acetylene


C2H2


74-86-2


11.40


2


ZR


ZR


Acetylglycine, N-


C4H7NO3


543-24-8


9.40


NA


NA


NA


Acrolein


C3H4O


107-02-8


10.22


1.2


3.2


NA


Acrylic acid


C3H4O2


79-10-7


10.60


3


21


ZR


Acrylonitrile


C3H3N


107-13-1


10.91


1.6


ZR


ZR


Alkanes, n-, C6+


CnH2n+2


N/A


~10


NA


1.2


NA


Allyl acetoacetate


C7H10O3


1118-84-9


~10


NA


1.5


ZR


Allyl alcohol


C3H6O


107-18-6


9.63


1.1


2.3


4


Allyl bromide


C3H5Br


106-95-6


9.96


NA


3


NA


Allyl chloride


C3H5Cl


107-05-1


10.05


0.9


3.3


16


Allyl glycidyl ether


C6H10O2


106-92-3


~10


NA


0.8


NA


Allyl propyl disulfide


C6H12S2


2179-59-1


~8.5


NA


0.4


NA


Allylamine


C3H7N


107-11-9


8.80


NA


0.8


NA


Ammonia


NH3


7664-41-7


10.18


5.7


8.5


NA


Amyl acetate


C7H14O2


628-63-7


9.90


0.64


1.8


9


Amyl alcohol


C5H12O


71-41-0


10.00


0.75


2.6


10


Amyl alcohol, tert-


C5H12O


75-85-4


9.80


1.01


1.5


2.8


Amyl salicylate


C12H16O3


2050-88-0


~9


NA


4


NA


Anethole


C10H12O


104-46-1


~9


NA


0.4


NA


Aniline


C6H7N


62-53-3


7.70


0.7


1.0


0.8


Anisole


C7H8O


100-66-3


8.21


0.57


0.59


0.59


Anisyl aldehyde


C8H8O2


123-11-5


~9


NA


0.4


NA


Argon


Ar


7440-37-1


15.76


ZR


ZR


NA


Aromatic hydrocarbons, C8


H8H10


90989-38-1


~8.7



0.55


0.5


Asphalt, petroleum fumes



8052-42-4


~9


NA


1


NA


Benzaldehyde


C7H6O


100-52-7


9.49


0.9


0.7


0.9


Benzene


C6H6


71-43-2


9.24


0.53


0.50


0.54


Benzenethiol


C7H7S


100-53-8


8.50


0.6


0.8


0.8


Benzoic acid


C7H6O2


65-85-0


9.30


NA


0.7


NA


Benzonitrile


C7H5N


100-47-0


9.62


0.8


0.5


0.7


Benzoquinone, o-


C6H4O2


583-63-1


9.30


NA


1


NA


Benzoquinone, p-


C6H4O2


106-51-4


10.01


NA


1


NA


Benzoyl bromide


C7H5BrO


618-32-6


9.65


NA


2


NA


Benzyl 2-phenylacetate


C15H14O2


102-16-9


~9


NA


0.5


NA


Benzyl acetate


C9H10O2


140-11-4


~9


NA


0.6


NA


Benzyl alcohol


C7H8O


100-51-6


8.26


1.3


1.0


1.6


Benzyl chloride


C7H7Cl


100-44-7


9.14


0.58


0.7


0.7


Benzyl formate


C8H8O2


104-57-4


9.32


0.66


0.8


NA


Benzyl isobutyrate


C11H14O2


103-28-6


~9


NA


0.5


NA


Benzyl nitrile


C8H7N


140-29-4


9.39


1.4


1.4


1.5


Benzyl propionate


C10H12O2


122-63-4


~9


NA


0.8


NA


Benzylamine


C7H9N


100-46-9


7.56


NA


0.6


NA


Biphenyl


C12H10


92-52-4


8.23


NA


0.4


0.6


Borneol


C10H18O


507-70-0


~9


NA


0.8


NA


Boron trifluoride


BF3


7637-07-02


15.50


ZR


ZR


ZR


Bromine


Br2


7726-95-6


10.55


0.74


15


ZR


Bromine pentafluoride


BrF5


7789-30-2


13.17


ZR


ZR


ZR


Bromo-2,2-dimethylpropane, 1-


C5H11Br


630-17-1


10.04


NA


2


NA


Bromo-2-chloroethane, 1-


C2H4BrCl


107-04-0


10.57


0.44


3


ZR


Bromo-2-methylpentane, 1-


C6H13Br


25346-33-2


10.09


NA


2


NA


Bromoacetone


C3H5BrO


598-31-2


9.73


NA


1.0


NA


Bromoacetylene


C2HBr


593-61-3


10.31


NA


4


ZR


Bromobenzene


C6H5Br


108-86-1


8.98


0.34


0.32


0.32


Bromobutane, 1-


C4H9Br


109-65-9


10.13


0.6


1.6


14


Bromobutane, 2-


C4H9Br


78-76-2


10.01


0.62


0.97


1.6


Bromochloromethane


CH2ClBr


74-97-5


10.77


1


ZR


ZR


Bromocyclohexane


C6H11Br


108-85-0


9.87


NA


2


NA


Bromoethane


C2H5Br


74-96-4


10.29


0.79


1.6


ZR


Bromoethanol, 2-


C2H5BrO


540-51-2


10.00


NA


2


NA


Bromoethyl methyl ether, 2-


C3H7OBr


6482-24-2


10.00


2


2.5


NA


Bromofluoromethane


CH2FBr


373-52-4


~11


1


ZR


ZR


Bromoform


CHBr3


75-25-2


10.48


0.5


2.7


60


Bromopentane, 1-


C5H11Br


110-53-2


10.10


0.47


1.1


3.5


Bromopropane, 1-


C3H7Br


106-94-5


10.18


0.7


1.5


70


Bromopyridine, 3-


C5H4BrN


626-55-1


9.75


NA


2


NA


Bromopyridine, 4-


C5H4BrN


1120-87-2


9.94


NA


2


NA


Bromotrifluoromethane


CF3Br


75-63-8


11.78


NA


ZR


ZR


Bromotrimethylsilane


C3H9BrSi


2857-97-8


10.00


1.6


1.9


2.1


But-2-ynal


C4H4O


1119-19-3


10.20


NA


3


NA


But-3-ynal


C4H4O


52844-23-2


9.85


NA


1.5


NA


Butadiene diepoxide, 1,3-


C4H6O2


1464-53-5


10.00


1.2


4


NA


Butadiene, 1,2-


C4H6


590-19-2


9.23



1



Butadiene, 1,3-


C4H6


106-99-0


9.07


1.1


0.8


0.8


Butane, n-


C4H10


106-97-8


10.63


1.5


40


ZR


Butanediol, 2,3-


C4H10O2


513-85-9


10.26


5.3


5


15


Butanedione, 2,3-


C4H6O2


431-03-8


9.56


1.00


0.86


0.87


Butanoic acid


C4H8O2


107-92-6


10.17


0.5


4.3


30


Butanol, 1-


C4H10O


71-36-3


10.04


1


3.9


25


Butanol, 2-


C4H10O


78-92-2


10.10


1.2


3.0


8


Butanone oxime, 2-


C4H9NO


96-29-7


~9



1



Buten-3-ol, 1-


C4H8O


598-32-3


9.50


1.3


1.8


3


Butene nitrile, 3-


C4H5N


109-75-1


10.20


NA


3.0


NA


Butene, 1-


C4H8


106-98-9


9.58


NA


1.5


NA


Butene, 2-


C4H8


107-01-7


9.10


NA


1.3


NA


Butene, cis-2-


C4H8


590-18-1


9.13


NA


1.3


NA


Butene, trans-2-


C4H8


624-64-6


9.13


NA


1.3


NA


Butenoic acid, 3-


C4H6O2


107-93-7


9.75


4


2


9


Butoxyethanol, 2-


C6H14O2


111-76-2


8.68


0.8


1.3


2.3


Butoxyethoxyethanol


C8H18O3


112-34-5


~10


4.8


3


13


Butoxyethyl acetate, 2-


C8H16O3


112-07-2


~9.8


1.3


2


4


Butyl acetate


C6H12O2


123-86-4


9.91


0.8


2.5


12


Butyl acetate, sec-


C6H12O2


105-46-4


9.91


0.80


1.8


5.5


Butyl acrylate


C7H12O2


141-32-2


~9.6


0.6


1.3


7


Butyl butyrate


C8H16O2


109-21-7


~9.7


0.8


1.53


2.8


Butyl chloroformate


C5H9ClO2


592-34-7


~10.4


NA


3.2


ZR


Butyl cyclohexan-1-ol, 4-tert-


C10H20O


98-52-2


~8.8


NA


1.4


NA


Butyl cyclohexyl acetate, 2-tert-


C12H22O2


88-41-5


~10


NA


0.9


NA


Butyl ether, n-


C8H18O


142-96-1


9.28


0.42


0.82


1.10


Butyl glycidyl ether


C7H14O2


2426-08-06


~10


NA


2


NA


Butyl iodide


C4H9I


542-69-8


9.23


0.3


0.27


0.25


Butyl isocyanate


C5H9NO


111-36-4


10.14


NA


2.5


NA


Butyl lactate


C7H14O3


138-22-7


9.80


NA


2.5


NA


Butyl mercaptan, n-


C4H10S


109-79-5


9.15


0.50


0.8


0.8


Butyl mercaptan, tert-


C4H10S


75-66-1


9.03


0.59


0.62


0.62


Butyl methacrylate


C8H14O2


97-88-1


~9.5


0.9


1.2


1.7


Butyl propionate, n-


C7H14O2


590-01-2


~9.7


0.80


1.9


4


Butylamine, n-


C4H11N


109-73-9


8.71


2


1


10


Butylamine, sec-


C4H11N


513-49-5


8.70


5


0.9


30


Butylamine, tert-


C4H11N


75-64-9


8.64


1.1


1.2


1.5


Butylbenzene


C10H14


104-51-8


8.69


0.4


0.6


0.7


Butylbenzene, sec-


C10H14


135-98-8


8.68


NA


0.4


0.4


Butylbenzene, tert-


C10H14


98-06-6


8.69


NA


0.4


0.4


Butyldiglycol acetate


C10H20O4


124-17-4


~10


3


1.6


15


Butylene carbonate, 1,2-


C5H8O3


4437-85-8


~10.4


3.8


18


ZR


Butylphenol, o-sec-


C10H14O


89-72-5


7.80


NA


0.9


NA


Butyn-1-ol, 2-


C4H6O


764-01-2


9.78


0.6


0.6


0.6


Butyn-2-one


C4H4O


1423-60-5


10.17


NA


3


NA


Butyraldehyde


C4H8O


123-72-8


9.86


1.2


1.7


1.9


Butyrolactone, gamma-


C4H6O2


96-48-0


10.26


NA


15


NA


Butyryl chloride


C4H7ClO


141-75-3


~10.4


NA


3


ZR


Camphene


C10H16


565-00-4


8.86


0.46


0.35


0.6


Camphor


C10H16O


76-22-2


8.76


NA


0.4


NA


Carbitol acetate


C6H16O4


112-15-12


~9


1.0


1.6


3


Carbon dioxide


CO2


124-38-9


13.77


ZR


ZR


ZR


Carbon disulfide


CS2


75-15-0


10.08


0.3


1.4


1.3


Carbon monoxide


CO


630-08-0


14.01


ZR


ZR


ZR


Carbon suboxide


C3O2


504-64-3


10.60


NA


10


ZR


Carbon tetrabromide


CBr4


558-13-4


10.31


6


11


ZR


Carbon tetrachloride


CCl4


56-23-5


11.47


1.7


ZR


ZR


Carbonyl fluoride


COF2


353-50-4


13.02


ZR


ZR


ZR


Carbonyl sulfide


COS


463-58-1


11.18


0.4


ZR


ZR


Carene


C10H16


13466-78-9


8.40


0.3


0.4


0.37


Carvacrol


C10H14O


499-75-2


~9


NA


0.8


NA


Carvone, R-


C10H14O


6485-40-1


9.77


1.7


1.6


1.5


Caryophyllene


C15H24


13877-93-5


~9


NA


0.4


NA


Chloral hydrate


C2H3Cl3O2


302-17-0


~10


2.2


NA


ZR


Chloramine


ClH2N


10599-90-3


9.85


NA


2


NA


Chlorine


Cl2


7782-50-5


11.48


1


ZR


ZR


Chlorine dioxide


ClO2


10049-04-4


10.36


ZR


ZR


ZR


Chlorine trifluoride


ClF3


7790-91-2


12.65


NA


ZR


ZR


Chloro-1,1,1,2-tetrafluoroethane, 2-


C2HClF4


2837-89-0


~12


ZR


ZR


ZR


Chloro-1,1,1-trifluoroethane, 2-


C2H2ClF3


75-88-7


~12


ZR


ZR


ZR


Chloro-1,1,2,2-tetrafluoroethane, 1-


C2HClF4


354-25-6


~12


ZR


ZR


ZR


Chloro-1,1,2-trifluoroethane, 1-


C2H2ClF3


421-04-5


~12


ZR


ZR


ZR


Chloro-1,1-difluoroethane, 1-


C2H3ClF2


75-68-3


11.98


ZR


ZR


ZR


Chloro-1,1-difluoroethane, 2-


C2H3ClF2


338-65-8


~11.9


ZR


ZR


ZR


Chloro-1,1-difluoroethene, 2-


C2HClF2


359-10-4


9.80


NA


1.5


NA


Chloro-1,2,2-trifluoroethane, 1-


C2H2ClF3


431-07-2


~12


ZR


ZR


ZR


Chloro-1-fluoroethane, 1-


C2H4ClF


1615-75-4


~11.7


1


ZR


ZR


Chloro-2-fluoroethane, 1-


C2H4ClF


762-50-5


~11.7


1


ZR


ZR


Chloro-2-propanone, 1-


C3H5ClO


78-95-5


9.92


NA


1


NA


Chloro-3,3,3-trifluoroprop-1-ene, 1-


C3H2ClF3


102687-65-0


~11


1




Chloroacetaldehyde


C2H3OCl


107-20-0


10.16


NA


3


NA


Chloroacetyl chloride


C2H2Cl2O


79-04-9


10.30


NA


8.0


NA


Chlorobenzene


C6H5Cl


108-90-7


9.07


0.47


0.45


0.5


Chlorobutane, 1-


C4H9Cl


109-69-3


10.64


0.74


10


ZR


Chlorobutane, 2-


C4H9Cl


78-86-4


10.57


1


5.8


ZR


Chlorocyclohexane


C6H11Cl


542-18-7


10.10


0.5


2


20


Chlorodifluoromethane


CHClF2


75-45-6


12.45


ZR


ZR


ZR


Chloroethane


C2H5Cl


75-00-3


10.97


1.1


ZR


ZR


Chloroethanol, 2-


C2H5ClO


107-07-3


10.50


1


10


ZR


Chloroethyl methyl ether, 2-


C3H7ClO


627-42-9


10.25


NA


2.6


NA


Chlorofluoromethane


CH2ClF


593-70-4


11.71


NA


ZR


ZR


Chloroform


CHCl3


67-66-3


11.42


0.8


ZR


ZR


Chloromethane


CH3Cl


74-87-3


11.28


0.74


ZR


ZR


Chloromethoxyethane


C3H7ClO


3188-13-4


10.30


NA


4


ZR


Chloropentafluoroethane


C2ClF5


76-15-3


12.96


ZR


ZR


ZR


Chloroprene


C4H5Cl


126-99-8


8.79


NA


1.3


NA


Chloropyridine, 2-


C5H4ClN


109-09-1


9.00


NA


1


NA


Chlorostyrene, o-


C8H7Cl


2039-87-4


~8.5


NA


0.4


NA


Chlorothiophene, 3-


C4H3ClS


17249-80-8


8.92


0.7


0.7


0.7


Chlorotoluene, m-


C7H7Cl


108-41-8


8.70


0.5


0.5


0.46


Chlorotoluene, o-


C7H7Cl


95-49-8


8.83


0.6


0.5


NA


Chlorotoluene, p-


C7H7Cl


106-43-4


8.69


0.3


0.4


0.3


Chlorotrifluoroethylene


C2ClF3


79-38-9


9.81


1


1


NA


Chlorotrifluoromethane


CClF3


75-72-9


12.60


NA


ZR


ZR


Cinnamic aldehyde


C8H8O


104-55-2


~9


NA


0.4


NA


Cinnamyl acetate


C11H12O2


21040-45-9


~9


NA


0.4


NA


Cinnamyl alcohol


C9H10O


104-54-1


8.10


NA


0.4


NA


Citral


C10H16O


5392-40-5


~8.7


1.7


1.7


3.4


Citronellal


C10H18O


106-23-0


~9


NA


0.9


NA


Citronellol


C10H20O


26489-01-0


~8.5


NA


1.0


NA


Citronellol acetate


C12H22O2


150-84-5


~9


NA


1.5


NA


Citronellol formate


C11H20O2


105-85-1


~9


NA


1.5


NA


Citronellyl isobutyrate


C14H26O2


97-89-2


~9


NA


0.9


NA


Clary propyl acetate


C11H20O3


131766-73-9


~9


1.3


1.2


2


Coumarin


C9H6O2


91-64-5


~9


NA


0.4


NA


Creosote


n/a


8021-39-4


~9


NA


1


NA


Cresol, m-


C7H8O


108-39-4


8.36


1.7


1.4


1.5


Cresol, o-


C7H8O


95-48-7


8.14


1.4


1.4


1.5


Cresol, p-


C7H8O


106-44-5


8.31


1.5


1.5


1.5


Cresyl acetate, p-


C9H10O2


140-39-6


8.60


NA


1.0


NA


Cresyl ethyl ether, p-


C9H12O


622-60-6


~9


NA


0.8


NA


Cresyl methyl ether


C8H10O


104-93-8


~9


NA


0.8


NA


Crotonaldehyde


C4H6O


4170-30-3


9.73


1.0


1.0


1.8


Crotonyl alcohol


C4H8O


6117-91-5


9.13


NA


0.8


NA


Cyanogen bromide


CNBr


506-68-3


11.84


ZR


ZR


ZR


Cyanogen chloride


CNCl


506-77-4


12.49


ZR


ZR


ZR


Cycloalkanes


N/A


N/A


~10


NA


1.5


NA


Cyclobutanone


C4H6O


1191-95-3


9.35


1.6


1.12


1.10


Cyclobutene


C4H6


822-35-5


9.43


NA


3


NA


Cycloheptane


C7H14


291-64-5


9.82


NA


1.1


NA


Cyclohex-2-enedione, 1,4-


C6H6O2


4505-38-8


9.77


NA


1.0


NA


Cyclohexane


C6H12


110-82-7


9.98


0.64


1.3


3.3


Cyclohexanethiol


C6H12S


1569-69-3


~9


NA


0.5


NA


Cyclohexanol


C6H12O


108-93-0


10.00


0.9


1.6


2.7


Cyclohexanone


C6H10O


108-94-1


9.16


0.8


1.0


1


Cyclohexene


C6H10


110-83-8


8.95


0.56


0.9


1.4


Cyclohexyl acetate


C8H14O2


622-45-7


~9.5


NA


1.2


NA


Cyclohexylamine


C6H13N


108-91-8


8.37


6


3


20


Cyclooctadiene


C8H12


29965-97-7


~9.5


0.5


1.0


1.1


Cyclopentadiene


C5H6


542-92-7


8.56


NA


0.8


NA


Cyclopentane


C5H10


287-92-3


10.52


0.7


10


ZR


Cyclopentanone


C5H8O


120-92-3


9.26


0.8


0.9


1.0


Cyclopentene


C5H8


142-29-0


9.01


NA


1.5


140


Cyclopentene-1,3-dione, 4-


C5H4O2


930-60-9


9.60


NA


1.0


NA


Cyclopropylamine


C3H7N


765-30-0


8.80


1.1


1.5


1.7


Cymene, p-


C10H14


99-87-6


8.29


NA


0.4


NA


Decahydronaphthalene


C10H18


91-17-8


9.14


NA


0.9


NA


Decanal


C10H20O


112-31-2


~9


1.6


1.2


4.0


Decane


C10H22


124-18-5


9.65


0.37


1.2


4.2


Decenal, trans-4-


C10H18O


65405-70-01


~9


1.2


1.4


2.4


Decene


C10H22


872-05-9


~9.5


NA


0.8


NA


Decyne, 1-


C10H18


764-93-2


9.91


0.37


0.43


0.83


Desfluorane


C3H2F6O


57041-67-5


~11


2


ZR


ZR


Deuterium oxide


D2O


7789-20-0


13.60


ZR


ZR


ZR


Diacetone alcohol


C6H12O2


123-42-2


~9.6


1.2


0.9


0.84


Diazine, 1,2-


C4H4N2


289-80-5


9.65


NA


3


NA


Diazine, 1,3-


C4H4N2


289-95-2


9.33


NA


3


NA


Diborane


B2H6


19287-45-7


11.38


NA


ZR


ZR


Dibromoacetylene


C2Br2


624-61-3


9.65


NA


2


NA


Dibromochloromethane


CHBr2Cl


124-48-1


10.59


0.7


10


ZR


Dibromocyclohexane, 1,2-


C6H10Br2


5401-62-7


10.02


NA


3


NA


Dibromocyclopentane


C5H8Br2


33547-17-0


10.06


NA


3


NA


Dibromodichloromethane


CBr2Cl2


594-18-3


10.40


NA


4


ZR


Dibromodifluoromethane


CF2Br2


75-61-6


11.07


NA


3


ZR


Dibromoethane, 1,2-


C2H4Br2


106-93-4


10.35


0.6


2


ZR


Dibromoethene, 1,1-


C2H2Br2


593-92-0


9.78


NA


1.5


NA


Dibromoethene, 1,2-


C2H2Br2


540-49-8


9.63


NA


1.5


NA


Dibromomethane


CH2Br2


74-95-3


10.41


0.70


1.9


ZR


Dibromotetrafluoroethane, 1,2-


C2F4Br2


124-73-2


11.10


1


ZR


ZR


Dichloro-1,1,1-trifluoroethane, 2,2-


C2HCl2F3


306-83-2


11.50


NA


ZR


ZR


Dichloro-1,1-difluoroethane, 1,2-


C2H2Cl2F2


1649-08-7


~11.7 5


ZR


ZR


ZR


Dichloro-1,2,2-trifluoroethane, 1,2-


C2HCl2F3


354-23-4


~11.5


NA


ZR


ZR


Dichloro-1,2-difluoroethane, 1,2-


C2H2Cl2F2


431-06-1


~11.5


1


ZR


ZR


Dichloro-1,2-difluoroethene, 1,2-


C2Cl2F2


598-88-9


10.20


NA


2


NA


Dichloro-1,3-butadiene, 1,4-


C4H6Cl2


1587-29-7


~9


1


0.6


NA


Dichloro-1-fluoroethane, 1,1-


C2H3Cl2F


1717-00-6


~11


1


ZR


ZR


Dichloro-1-fluoroethane, 1,2-


C2H3Cl2F


430-57-9


~11


1


ZR


ZR


Dichloro-1-propene, 2,3-


C3H4Cl2


78-88-6


~10.5


0.7


1.4


ZR


Dichloro-2,2,-difluoroethene, 1,1-


C2Cl2F2


79-35-6


9.69


1


1


NA


Dichloro-2-butene, 1,4-


C4H7Cl


764-41-0


~9.5


1


2.0


NA


Dichloro-2-butene, trans-1,4-


C4H7Cl


110-57-6


~9.5


1


2.0


NA


Dichloroacetylene


C2Cl2


7572-29-4


9.90


NA


5


NA


Dichlorobenzene, m-


C6H4Cl2


541-73-1


~9


0.35


0.5


0.5


Dichlorobenzene, o-


C6H4Cl2


95-50-1


9.06


0.48


0.6


0.6


Dichlorobenzene, p-


C6H4Cl2


106-46-7


9.06


0.35


0.5


0.5


Dichlorodifluoromethane


CCl2F2


75-71-8


11.75


ZR


ZR


ZR


Dichloroethane, 1,1-


C2H4Cl2


75-34-3


11.06


2


ZR


ZR


Dichloroethane, 1,2-


C2H4Cl2


107-06-2


11.05


0.6


ZR


ZR


Dichloroethene, 1,1-


C2H2Cl2


75-35-4


10.00


1


1.0


NA


Dichloroethene, 1,2-


C2H2Cl2


540-59-0


9.65


0.34


0.4


0.29


Dichloroethene, cis-1,2-


C2H2Cl2


156-59-2


9.66


1


0.8


NA


Dichloroethene, trans-1,2-


C2H2Cl2


156-60-5


9.65


0.34


0.4


NA


Dichlorofluoromethane


CHFCl2


75-43-4


12.39


ZR


ZR


ZR


Dichloromethane


CH2Cl2


75-09-2


11.32


1.00


70


ZR


Dichloromethylamine


CH3Cl2N


7651-91-4


9.52


NA


2


NA


Dichloropropane, 1,2-


C3H6Cl2


78-87-5


10.87


0.70


ZR


ZR


Dichlorotetrafluoroethane, 1,1-


C2Cl2F4


374-07-2


12.20


ZR


ZR


ZR


Dichlorotetrafluoroethane, 1,2-


C2Cl2F4


76-14-2


12.20


ZR


ZR


ZR


Dicyclohexylamine


C12H23N


101-83-7


~8.5


NA


0.9


NA


Dicyclopentadiene


C10H12


77-73-6


7.74


0.5


0.65


0.67


Diesel fuel



68334-30-5


8.00


0.4


0.8


NA


Diethoxyethane, 1,1-


C6H14O2


105-57-7


9.78


0.6


1.5


1.0


Diethoxymethane


C5H12O2


462-95-3


9.70



1



Diethyl carbonate


C5H10O3


105-58-8


~10.3


1.2


7


ZR


Diethyl ether


C4H10O


60-29-7


9.53


1.1


1.5


1.4


Diethyl maleate


C8H12O4


141-05-9


~10


NA


2


NA


Diethyl malonate


C7H12O4


105-53-3


10.20


NA


4


ZR


Diethyl phosphite


C4H11O3P


762-04-9


10.31


NA


2


ZR


Diethyl phthalate


C12H14O4


84-66-2


~9


NA


1


NA


Diethyl sulfate


C4H10SO4


64-67-5


~10.5


4


20


ZR


Diethyl sulfide


C4H10S


352-93-2


8.43


0.5


0.8


0.7


Diethyl sulfone


C4H10O2S


597-35-3


9.96


NA


2.0


NA


Diethylacetylene


C6H10


928-49-4


10.03


NA


2


NA


Diethylamine


C4H11N


109-89-7


8.01


NA


3


30


Diethylaminoethanol, 2-


C6H15ON


100-37-8


8.58


NA


2.7


NA


Diethylaminopropylamine, 3-


C7H18N2


104-78-9


~9


3


5


3


Diethylchlorophosphite


C4H10ClO2P


589-57-1


9.50


1.4


1.0


ZR


Diethylene glycol


C4H10O3


111-46-6


~10.3


30


15


40


Diethylene glycol monoethyl ether


C6H14O3


111-90-0


~9


1.2


1.5


3


Diethylenetriamine


C4H13N3


111-40-0


~9


NA


1


NA


Diethylhydroxylamine


C4H11NO


3710-84-7


~10


1.2


1.5


1.5


Diethylsilane


C4H12Si


542-91-6


9.80


NA


2


NA


Difluoroethane, 1,1-


C2H4F2


75-37-6


11.87


ZR


ZR


ZR


Difluoroethane, 1,2-


C2H4F2


624-72-6


11.86


ZR


ZR


ZR


Difluoromethane


CH2F2


75-10-5


12.71


ZR


ZR


ZR


Diglycidyl ether


C6H10O3


2238-07-5


~9.6


NA


3


NA


Dihydroeugenol


C10H14O2


2785-87-7


~9


NA


0.4


NA


Dihydrojasmone


C11H18O


1128-08-1


~9


NA


0.6


NA


Dihydromyrcenol


C10H20O


18479-58-8


~9


NA


0.8


NA


Dihydroxybenzene, 1,2-


C6H6O2


120-80-9


8.56


NA


1


NA


Dihydroxybenzene, 1,3-


C6H6O2


108-46-3


8.63


NA


1


NA


Diiodomethane


CH2I2


75-11-6


9.46


NA


1.2


NA


Diisobutyl ketone


C9H18O


108-83-8


9.04


NA


0.8


0.7


Diisobutylene


C8H16


107-39-1


8.91


0.50


0.7


0.9


Diisopropyl ether


C6H14O


108-20-3


9.20


0.62


0.70


0.95


Diisopropylamine


C6H15N


108-18-9


7.73


0.53


0.7


0.6


Diisopropylbenzene


C12H18


25321-09-9


~8.8


NA


0.5


NA


Diketene


C4H4O2


674-82-8


9.60


1.4


2.2


NA


Dimethoxybenzene, 1,4-


C8H10O2


150-78-7


~9


NA


1.3


NA


Dimethoxyethane, 1,2-


C4H10O2


110-71-4


9.20


0.6


0.9


1.2


Dimethoxymethane


C3H8O2


109-87-5


10.00


1.2


2.8


13


Dimethyl carbonate


C3H6O3


616-38-6


10.52


1.5


60


ZR


Dimethyl chlorothiophosphate


C2H6ClO2PS


2524-03-0


~9


NA


1


NA


Dimethyl disulfide


C2H6S2


624-92-0


8.46


NA


0.2


NA


Dimethyl ether


C2H6O


115-10-6


10.03


NA


1.3


NA


Dimethyl hydrogen phosphite


C2H7O3P


868-85-9


10.53


NA


8


ZR


Dimethyl phthalate


C10H10O4


131-11-3


9.64


NA


1


NA


Dimethyl sulfate


C2H6O4S


77-78-1


~12


2.3


ZR


ZR


Dimethyl sulfoxide


C2H6OS


67-68-5


9.10


9


20


32


Dimethylacetamide N,N-


C4H9NO


127-19-5


8.81


0.8


1.3


NA


Dimethylacetylene


C4H6


503-17-3


9.58


0.4


0.19


0.16


Dimethylamine


C2H7N


124-40-3


8.24


2


1.5


NA


Dimethylaminoethane, N,N-


C2H8N2


57-14-7


8.05


0.8


1


NA


Dimethylaminoethanol, 2-


C4H11NO


108-01-0


8.80


7


3


50


Dimethylaniline, NN-


C8H11N


121-69-7


7.12


0.9


2


2


Dimethylboron bromide


C2H6BBr


5158-50-9


10.25


NA


4


NA


Dimethylbutene, 2,3-


C6H12


563-78-0


9.07



0.8



Dimethylbutyl acetate, 1,3-


C8H16O2


108-84-9


~9.5


2


1.6


NA


Dimethylcycloheptane, 1,2-


C9H18


13151-50-3


10.21


NA


1.3


NA


Dimethylcyclohexane,1,2-


C8H16


583-57-3


9.41


0.45


0.55


0.9


Dimethylcyclopentane


C7H14


1192-18-3


9.92


NA


1.2


NA


Dimethylethylamine, NN-


C4H11N


598-56-1


7.74


1.2


1.6


1.7


Dimethylformamide


C3H7NO


68-12-2


9.13


1.12


1.3


1.1


Dimethylmethylphosphonate


C3H9O3P


756-79-6


9.94


NA


5


NA


Dimethyloctan-1-ol, 3,7-


C10H22O


106-21-8


~9


NA


1.2


NA


Dimethyloctan-3-ol, 3,7-


C10H22O


78-69-3


~9


NA


1.2


NA


Dimethylpentane, 2,4-


C7H16


108-08-7


~9.8


NA


1


NA


Dimethylsilane


C2H8Si


1111-74-6


10.30


NA


2


ZR


Di-n-butylamine


C8H19N


111-92-2


7.69


1


6


4


Dioxane, 1,4-


C4H8O2


123-91-1


9.13


0.85


1.45


1.7


Dioxolane


C3H6O2


646-06-0


9.13


1.47


2.7


4.5


Dipentene


C10H16


138-86-3


~8.6


1


0.9


0.8


Dipentene, (+)-


C10H16


5989-27-5


~8.6


0.45


0.8


0.8


Diphenyl ether


C12H10O


101-84-8


8.09


1.4


1.5


1.7


Dipropyl ether


C6H14O


111-43-3


9.30


NA


1.0


NA


Dipropylamine


C6H15N


142-84-7


7.80


0.7


1.5


1.5


Dipropylene glycol


C6H14O3


110-98-5


~10


NA


4


NA


Disilane


Si2H6


1590-87-0


9.74


NA


2


NA


Disulfur decafluoride


S2F10


5714-22-7


12.77


NA


ZR


ZR


Disulfur dibromide


S2Br2


13172-31-1


9.23


NA


1.5


NA


Disulfur dichloride


S2Cl2


10025-67-9


9.40


NA


3


NA


Di-tert-butyl-p-cresol


C15H24O


128-37-0


7.80


NA


0.3


NA


Divinylbenzene, 1,2-


C10H10


1321-74-0


~8.2


NA


0.7


0.6


Divinylbenzene, 1,3-


C10H10


108-57-6


~8.3


NA


0.6


0.6


Dodecene


C12H24


112-40-3


~8.8


NA


1.0


NA


Enflurane


C4H2F5ClO


13838-16-9


11.70


ZR


ZR


ZR


Epichlorohydrin


C3H5ClO


106-89-8


10.20


0.80


5


30


Epoxypropyl isopropyl ether, 2,3-


C6H12O2


4016-14-2


~10


0.6


1.2


1.1


Estragole


C10H12O


140-67-0


~9


NA


0.7


NA


Ethane


C2H6


74-84-0


11.56


3


ZR


ZR


Ethanol


C2H6O


64-17-5


10.47


3


11


ZR


Ethanolamine


C2H7NO


141-43-5


10.47


NA


3


ZR


Ethoxy-2-methylpropane, 1-


C6H14O


627-02-1


9.30


NA


1


NA


Ethoxy-2-propanol, 1-


C5H12O2


1569-02-4


~9.6


0.9


1.2


1.9


Ethoxybutane, 2-


C6H14O


19316-73-5


9.32


NA


1


NA


Ethoxyethanol, 2-


C4H10O2


110-80-5


9.60


1.7


2


5


Ethoxynonafluorobutane


C6H5OF9


163702-06-5


12.00



ZR


ZR


Ethoxypropanol


C5H12O2


52125-53-8


~9.6


0.9


1.2


1.9


Ethyl 2,2,2-trifluoroethyl ether


C4H7F3O


461-24-5


10.27


NA


5


NA


Ethyl 2-methylbutyrate


C7H14O2


7452-79-1


~9


0.72


1.4


1.8


Ethyl acetate


C4H8O2


141-78-6


10.01


1.4


4.5


40


Ethyl acetoacetate


C6H10O3


141-97-9


~9.5


2.2


2.5


3


Ethyl acrylate


C5H8O2


140-88-5


10.30


1.0


2.3


15


Ethyl benzoate


C9H10O2


93-89-0


8.90


NA


0.9


NA


Ethyl butyrate


C6H12O2


105-54-4


~9.9


1.0


1.4


3.3


Ethyl chloroformate


C3H5O2Cl


541-41-3


10.64


2.0


80


ZR


Ethyl cyanoacrylate


C6H7O2N


7085-85-0


~10


NA


1.5


NA


Ethyl decanoate


C12H24O2


110-38-3


~9.6


2


1.4


8


Ethyl formate


C3H6O2


109-94-4


10.61


1.76


35


ZR


Ethyl hexanoate


C8H16O2


123-66-0


~9.75


0.7


1.6


3.3


Ethyl hexanol, 2-


C8H18O


104-76-7


~9.8


1


1.5


NA


Ethyl iodide


C2H5I


75-03-6


9.34


0.30


0.30


0.30


Ethyl isopropyl ketone


C6H12O


565-69-5


9.10


NA


0.8


NA


Ethyl lactate


C5H10O3


97-64-3


~10


1.09


2.1


5


Ethyl mercaptan


C2H6S


75-08-1


9.29


0.6


0.6


0.6


Ethyl methacrylate


C6H10O2


97-63-2


~9.5


0.86


1.06


1.6


Ethyl methyl carbonate


C4H8O3


623-53-0


10.40


1.2


18


ZR


Ethyl octanoate


C10H20O2


106-32-1


~9.7


0.8


2


4


Ethyl perfluorobutyl ether


C6H5F9O


163702-05-4


~11


20


ZR


ZR


Ethyl phenylacetate


C10H12O2


101-97-3


~9


NA


1.2


NA


Ethyl propanoate


C5H10O2


105-37-3


10.01


1.2


2.5


6


Ethyl tert-butyl ether


C6H14O


637-92-3


9.39


NA


0.8


NA


Ethyl-2-methylbenzene, 1-


C9H12


611-14-3


~8.7


NA


0.5


0.5


Ethyl-3-ethoxypropionate


C7H14O3


763-69-9


~9.5


NA


3


NA


Ethylacetylene


C4H6


107-00-6


10.18


0.4


0.2


0.2


Ethylamine


C2H7N


75-04-7


8.86


1


1


NA


Ethylbenzene


C8H10


100-41-4


8.76


0.54


0.56


0.6


Ethylcyclohexane


C8H16


1678-91-7


9.54


0.48


0.8


1.3


Ethylene


C2H4


74-85-1


10.51


3


50


ZR


Ethylene carbonate


C3H4O3


96-49-1


10.40


NA


ZR


ZR


Ethylene cyanohydrin


C3H5NO


109-78-4


~10.8


1


ZR


ZR


Ethylene dinitrate


C2H4O6N2


628-96-6


~10.8


NA


ZR


ZR


Ethylene glycol


C2H6O2


107-21-1


10.16


4.1


9


9


Ethylene glycol diacetate


C6H10O4


111-55-7


~10


NA


4


NA


Ethylene glycol monopropyl ether


C5H12O2


2807-30-9


~9


1.7


3


4


Ethylene oxide


C2H4O


75-21-8


10.56


2


9.0


ZR


Ethylenediamine


C2H8N2


107-15-3


8.60


8


10


10


Ethyleneimine


C2H5N


151-56-4


9.20


NA


2


NA


Ethylhexanal, 2-


C8H16O


123-05-7


~9


NA


1.5


NA


Ethylhexanoic acid, 2-


C8H16O2


149-57-5


~10


2.9


5


16


Ethylhexenal, 2-


C8H14O


645-62-5


~9


NA


1.3


NA


Ethylhexyl acrylate, 2-


C11H20O2


103-11-7


~9


0.5


1


NA


Ethylmorpholine, 4-


C6H13NO


100-74-3


~8


0.9


3


2


Ethyltoluene, 3-


C9H12


620-14-4


~8.5



0.6



Ethyltoluene, 4-


C9H12


622-96-8


~8.5



0.6



Eucalyptol


C10H18O


470-82-6


~9


NA


0.6


NA


Eugenol


C10H12O2


97-53-0


~9


30


10.0


30


Eugenol methyl ether


C11H14O2


93-15-2


~9


NA


0.4


NA


Fenchol


C10H18O


1632-73-1


~9


NA


0.4


NA


Ferrocene


C10H10Fe


102-54-5


6.88


NA


0.8


NA


Fluorine


F2


7782-41-4


15.70


NA


ZR


ZR


Fluoro-2-propanone, 1-


C3H5FO


430-51-3


9.92


1


ZR


NA


Fluorobenzene


C6H5F


462-06-6


9.20


0.78


0.74


0.83


Fluorobenzoic acid, 4-


C7H5FO2


456-22-4


9.91


NA


2


NA


Fluoroethane


C2H5F


353-33-6


11.78


ZR


ZR


ZR


Fluoromethane


CH3F


593-53-3


12.47


ZR


ZR


ZR


Formaldehyde


CH2O


50-00-0


10.87


0.6


ZR


ZR


Formamide


CH3ON


75-12-7


10.20


NA


2


NA


Formic acid


CH2O2


64-18-6


11.05


5


ZR


ZR


Furan


C4H4O


110-00-9


8.88


NA


0.4


NA


Furfural


C5H4O2


98-01-1


9.21


1.1


1.1


1.1


Furfuryl alcohol


C5H6O2


98-00-0


~9.9


NA


2


NA


Furfuryl mercaptan


C5H6OS


98-02-2


~9


0.60


0.8


0.8


Gasoline



8006-61-9


~9.9


NA


0.9


1


Geranial


C10H16O


141-27-5


~9


NA


0.6


NA


Geraniol


C10H18O


106-24-1


~9


NA


0.7


NA


Geranyl acetate


C12H20O2


105-87-3


~9


NA


1.2


NA


Germane


GeH4


7782-65-2


11.34


NA


10


ZR


Glutaraldehyde


C5H8O2


111-30-8


~9.6


5


5


13


Glycidol


C3H6O2


556-52-5


~10.8


2


ZR


ZR


Glycidyl methacrylate


C7H10O3


106-91-2


~10


NA


1.2


ZR


Glycolaldehyde


C2H4O2


141-46-8


~10.4


NA


5


ZR


Glyoxal


C2H2O2


107-22-2


10.20


ZR


ZR


ZR


Guaiacol


C7H8O2


90-05-1


~9


NA


0.8


NA


Halothane


CF3CHBrCl


151-67-7


11.00


0.6


ZR


ZR


Helium


He


7440-59-7


24.59


NA


ZR


ZR


Heptan-2-one


C7H14O


110-43-0


9.33


0.54


0.85


0.97


Heptan-3-one


C7H14O


106-35-4


9.02


0.59


0.73


0.81


Heptan-4-one


C7H14O


123-19-3


9.10


0.7


0.9


1.0


Heptane


C7H16


142-82-5


9.92


0.5


2.2


11


Parts

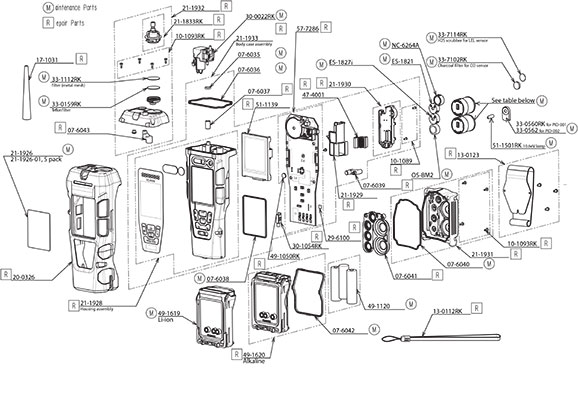

GX-2012 parts list

Part Number Description
07-6035 O-ring, P6 EPDM
07-6036 Gasket for top cover, EPDM Black
07-6037 Joint pump EPDM black
07-6038 Gasket for cover, EPDM black
07-6039 Joint pressure  sensor, EPDM black
07-6040 Gasket for sensor cover, EPDM black
07-6041 Gasket for sensor cap, Fluorine-contained rubber Black
07-6042 Gasket for BUD-6000, EPDM black
07-6043 Gasket for pump, EPDM black
10-1089 Screw, 2 x 4.5 SUS
10-1093RK Screw SUS304 M2x6
13-0112RK Hand strap
13-0123 Belt clip with screws
17-1031 Taper nozzle, red
20-0326 Rubber protect cover
21-1833RK Filter case assembly
(GX-2012/6000/RP-2009)
21-1926, 1 ea
21-1926-01, 5 p
LCD protection film
5 pcs/pack
21-1928 RKI
Housing assembly for EX
21-1929 Protection case, L-1225L
black
21-1930 Sensor case
21-1931 Sensor cover assembly
21-1932 Top case assembly
21-1933 RKI
Body case assembly for EX
29-6100 Water immersion sensing seal
1
pack = 10 pcs
30-0022RK Pump RP-12
(GX-2012/6000/CO-FL1/RP-
2009)
30-1054RK Vibration motor,  A3BE-MT4
33-0159RK Teflon filter 1 pack = 10 pcs, PF-060
(GX-2003/2012/6000/RP-6
RP-2009/GP-1000)
33-0560RK PPB pellet for
PIS-001 sensor
33-0562 HPPM pellet for
PIS-002 sensor
33-1112RK Filter (Metal mesh)
1 pack =
10 pcs
(GX-2003/2012/6000/RP-6
RP-2009)
33-7102RK Charcoal filter
CF-1821-2 for
CO sensor
1 pack = 5 pcs
(GX-2009/2012/6000)
33-7114RK H2S scrubber filter
CF-6264-8
for LEL sensor
1 pack = 5 pcs
47-4001 Connector with cable, MAIN to SENSOR
49-1050RK Silver oxide battery, SR616SW
49-1120 Alkaline  battery
(AA size) TOSHIBA
49-1619 Lithium-ion battery unit
BUL-6000
49-1620 Alkaline  battery
unit, BUD-6000
49-2982-01 Battery charger unit
BC-6000
(with AC adaptor)
51-1139 LCD module
BTD-128160B-FBWB-G-G
51-1501RK PID lamp 10.6eV LA4SM600
57-7286 Main PCB assembly
DES-3311-1 DES-3311-1 CO2 0-5vol% Sensor
DES-3311-2 DES-3311-2 HC 0-100%LEL
0-30vol% Sensor
ES-1821 CO sensor Sensor
ES-1827I H2S sensor Sensor
ESS-03DH-HCN ESS-03DH HCN 0-15ppm Sensor
ESS-03DH-NO2 ESS-03DH NO2 0-9ppm Sensor
ESS-03DH-SO2 ESS-03DH SO2 0-6ppm Sensor
NC-6264A HC sensor Sensor
OS-BM2 O2 sensor Sensor
PID-001 PIS-001 Iso-buthylene
0-50000ppb Sensor
PID-002 PIS-002 Iso-buthylene
0-6000pm Sensor

Download

Training Video

This video is also available on YouTube and CD (by request)

Contact Image

Contact Us

Best Selling

You Might Also Like

© 2024 RKI Instruments. All Rights Reserved | Gas Detectors | Portable Gas Monitors | Gas Sensors
