Name: SDM-Force Calibration Station
Brand: RKI Instruments

Overview

Stand Alone Station

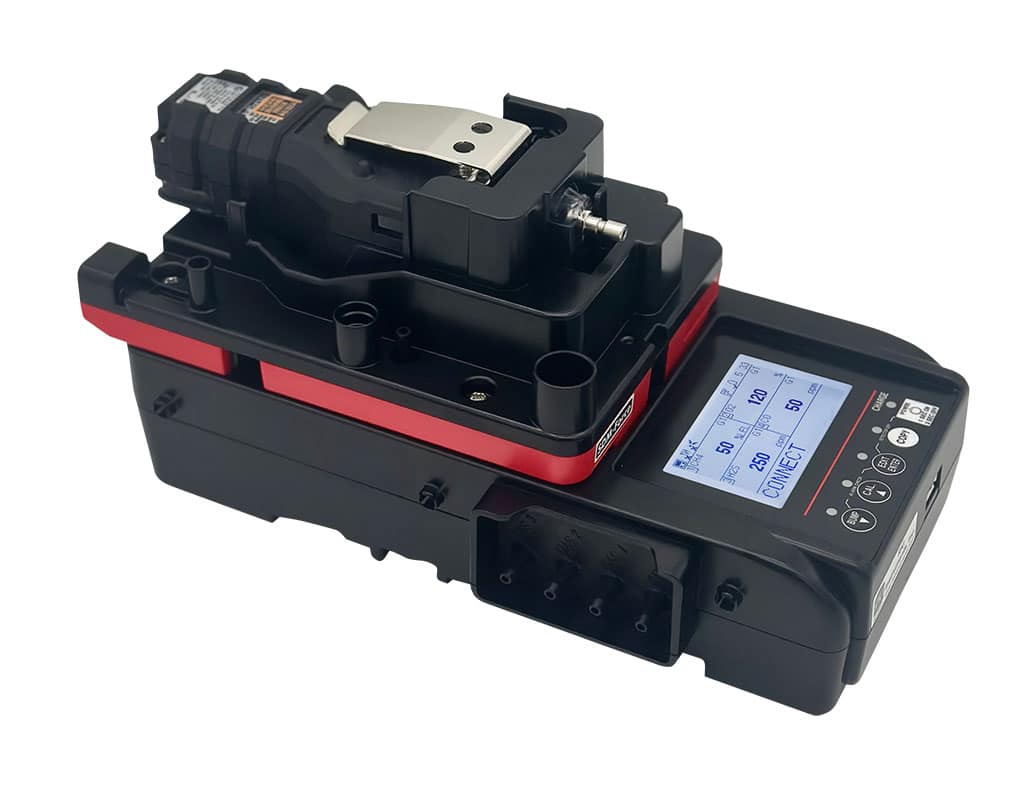

The SDM-Force is a versatile maintenance tool that automates the service of a GX-Force portable gas monitor. This docking station can be used as a stand alone device for charging, calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled System

The SDM-Force can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from GX-Force instruments. Up to ten SDM-Force docking stations can be connected simultaneously using USB cables and the SDM-Force includes connections for one to three calibration gas cylinders.

Multi Module System

Multiple connected to a PC (10 max)
Charging
Calibration
Bump Test
Configure GX-Force

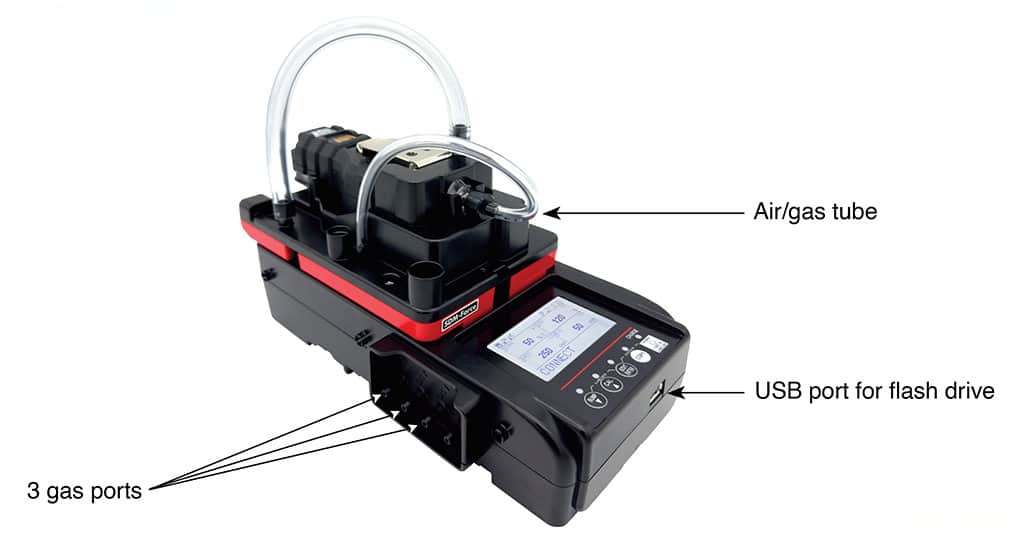

3 Calibration gas ports

Specifications

Input Power	Main unit input: 5.2 VDC Accessory AC adapter input: 100-240 VAC
Operating Temperature	0 to 40 ° C (no sudden fluctuations)
Applicable Instruments	GX-Force
Memory capacity	Up to 500 bump tests, calibrations, or alarm checks
Number of Calibration Gas Cylinders	Up to three calibration gas cylinders

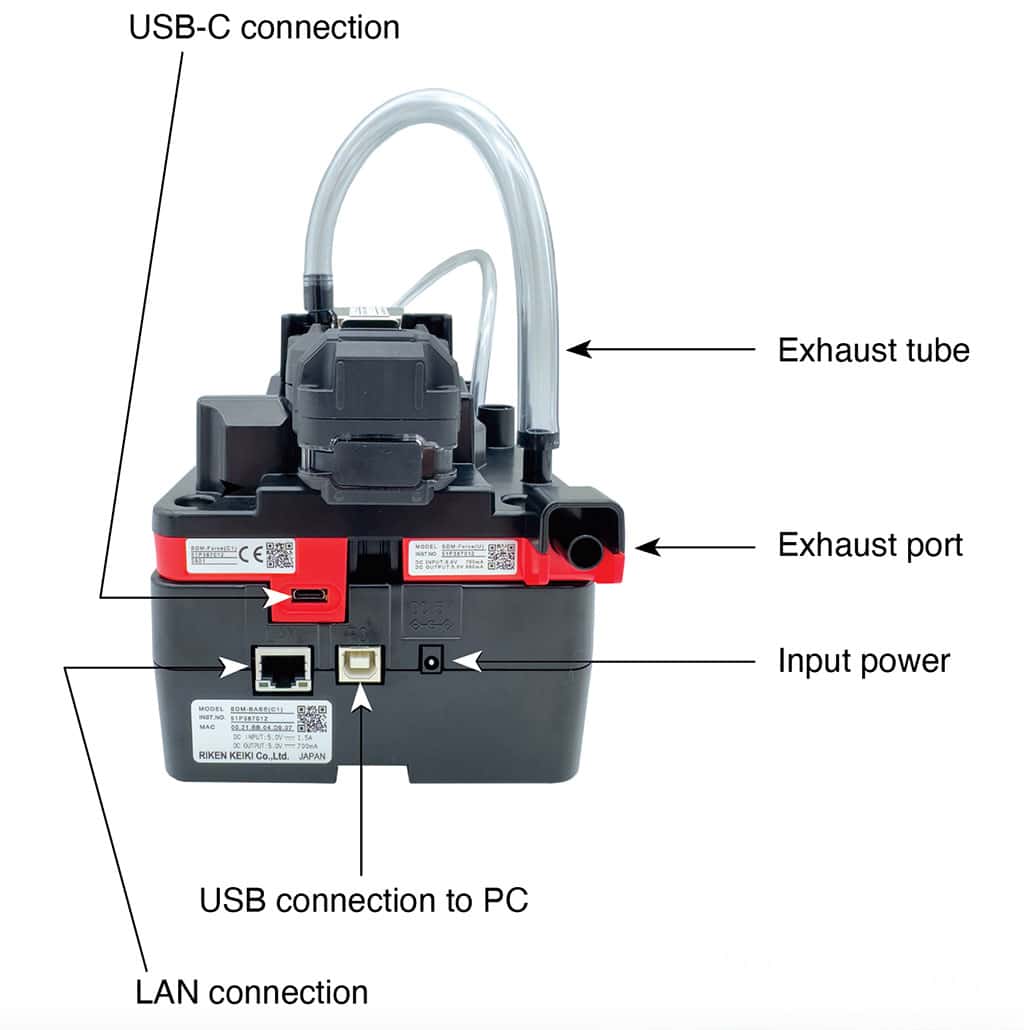

Standard Accessories	USB-C cable for instrument connection Air Filter AC Adapter Exhaust tubing Flash drive USB-A to USB-B cable LAN cable

Ordering Information

Docking Station
81-SDMFRC101	SDM-Force calibration station with 1 solenoid, filter, AC adapter, USB-C instrument connection cable, exhaust tube, flash drive, USB & LAN cables
81-SDMFRC102	SDM-Force calibration station with 1 solenoid, filter, AC adapter, USB-C instrument connection cable, exhaust and sample tube, flash drive, USB & LAN cables, DFR
81-SDMFRC103	SDM-Force calibration station with 1 solenoid, filter, AC adapter, USB-C instrument connection cable, exhaust and sample tube, flash drive, USB & LAN cables, DFR, 58 AL cyl H2S/CO/CH4/02, cylinder holder
81-SDMFRC104	SDM-Force calibration station with 1 solenoid, filter, AC adapter, USB-C instrument connection cable, exhaust and sample tube, flash drive, USB & LAN cables, DFR, 34 AL cyl H2S/CO/CH4/02, cylinder holder
81-SDMFRC201	SDM-Force calibration station with 2 solenoids, filter, AC adapter, USB-C instrument connection cable, exhaust tube, flash drive, USB & LAN cables
81-SDMFRC202	SDM-Force calibration station with 2 solenoids, filter, AC adapter, USB-C instrument connection cable, exhaust tube, flash drive, USB & LAN cables, 2 DFRs
81-SDMFRC203	SDM-Force calibration station with filter, AC adapter, USB-C instrument connection cable, exhaust and sample tube, flash drive, USB & LAN cables, DFR, 58 AL cyl H2S/CO/CH4/02, cylinder holder
81-SDMFRC204	SDM-Force calibration station with filter, AC adapter, USB-C instrument connection cable, exhaust and sample tube, flash drive, USB & LAN cables, DFR, 34 AL cyl H2S/CO/CH4/02, cylinder holder

Download

SDM-Force Software
SDM-Force PC Controller program 7.5MB version 08128

SDM-Force Literature
SDM-Force Datatsheet
SDM-Force Manuals
SDM-Force Calibration Station Standalone Configuration Manual
