Name: SDM-2012 Calibration Station
Brand: RKI Instruments

Overview

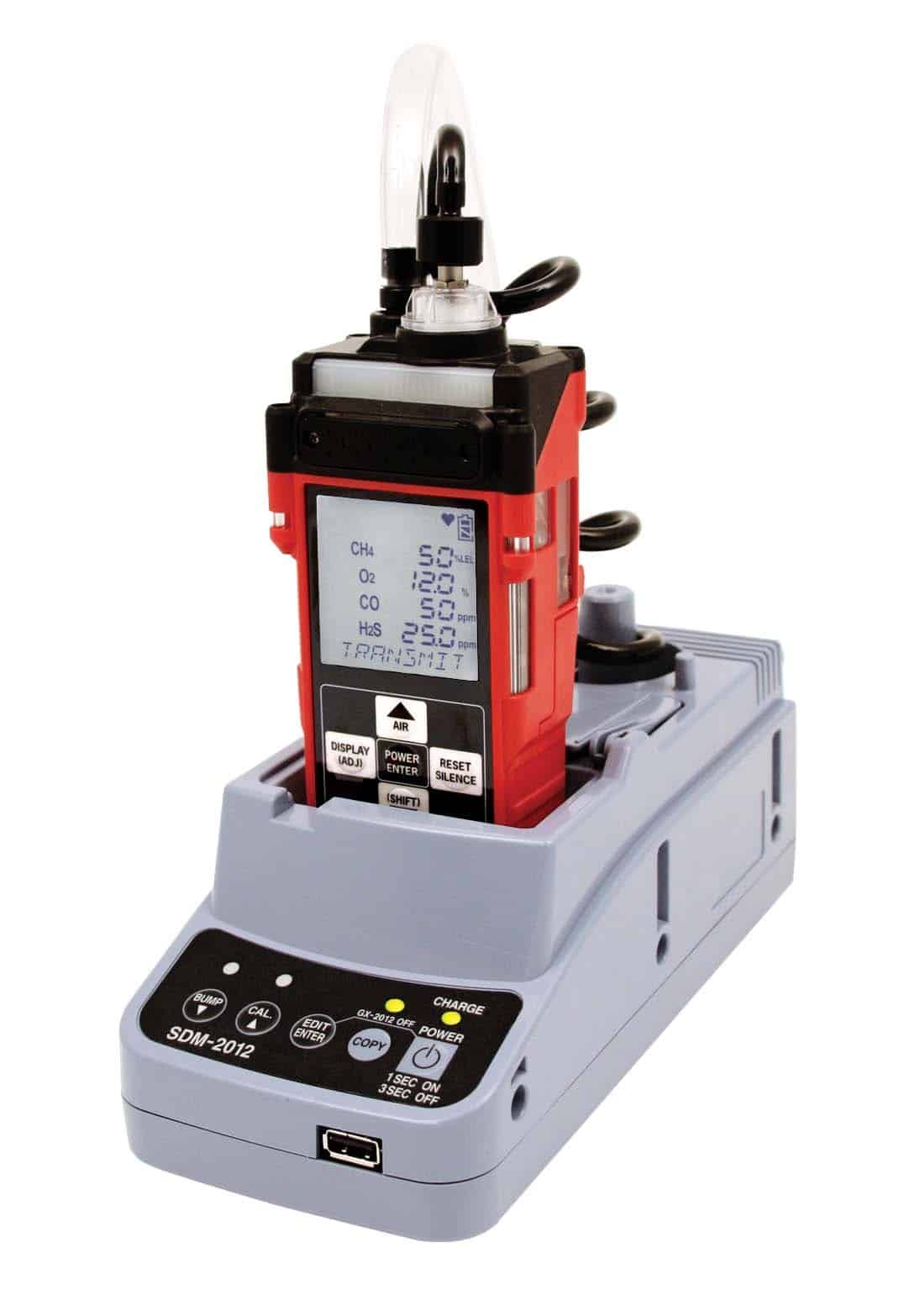

RKI’s new SDM-2012 calibration station for the GX-2012 is now available with advanced features for charging, calibration, & bump testing. Once you power up the GX-2012 inside the SDM-2012 calibration module, the GX-2012’s display will indicate whether it’s transmitting data, bump testing, calibrating, as well as the results of the bump test or calibration.

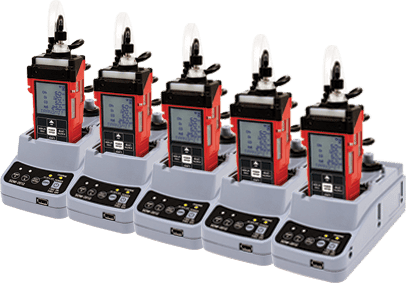

Multi Module System
The SDM-2012 can also be connected to a PC for automated calibration, bump testing, and archiving of logged data including calibration and bump test records, interval and alarm trends. Network up to 10 SDM-2012 stations to charge, calibrate, and bump test 10 instruments simultaneously.

User Guide Poster
Each SDM-2012 ships with a pictoral wall chart user guide. This guide gives the already easy to use cal station a simple pictorial easy step by step guide to calibrating or bump testing a GX-2012. It’s ideal to hang in an instrument shop or wherever the GX-2012 is located.

Application

Multi Module System

Multiple modules connected to a PC (10 max)
Charging
Calibration
Bump Test
Configure GX-2012 parameters
2 Calibration gas ports
Archive Bump Test and Calibration records
Archive data to network location
Software controlled data retrieval
Automatic calibration/bump test option
Windows 7 compatible

Specifications

Input Power	12 VDC NOTE: AC Adapter with 100 – 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard.
Environmental Conditions	• For Indoor Use Only • -10° C to 40° C, below 80% Relative Humidity, Non-Condensing
Applicable Instruments	GX-2012 and Gas Tracer
Maximum Number of Records Saved	200 (stand-alone)
Number of Calibration Gas Cylinders	Up to two calibration gas cylinders per bump test or calibration at a time
Standard Accessories	AC Adapter USB Flash Drive Single Module Data Viewer Software SDM Docking Station PC Controller Software Inlet Air Filter Instruction Manual 10 Foot Long Exhaust Tube Two 3 Foot Long Tubes for GAS 1 and GAS 2 Fittings 3 T-Fittings for PC Controlled Configuration USB Cable, Type A to Type B

Specifications subject to change without notice

Ordering Info

Docking Station
81-SDM2012-01	Single point calibration station for GX-2012, model SDM-2012 with AC Adaptor, flash drive, USB cable, tubing & installation CD
81-SDM2012-02	Single point calibration station for GX-2012, model SDM-2012 with AC Adaptor, flash drive, USB cable, tubing installation CD & demand flow regulator
81-SDM2012-03	Single point calibration station for GX-2012, model SDM-2012 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator & 58AL cyl H2S (25 ppm)/CO/CH4/O2
81-SDM2012-04	Single point calibration station for GX-2012, model SDM-2012 with AC Adaptor, flash drive, USB cable, tubing, installation CD, demand flow regulator, 58AL cyl H2S (25 ppm)/CO/CH4/O2 & 58L steel cyl Methane 100% volume
81-SDM2012-05	Single point calibration station for GX-2012, model SDM-2012 with AC Adaptor, flash drive, USB cable, tubing, installation CD, two demand flow regulators, 58AL cyl H2S (25 ppm)/CO/CH4/O2 & 58L steel cyl Methane 100% volume
Calibration Equipment and Accessories
81-0013RK-05	Cylinder, Methane, 50% volume in N2, 58L steel
81-0016RK-05	Cylinder, Methane 100% volume, 58L steel
81-0078RK-03	Cylinder, N2 100%, 103L
81-0085RK-01	Cylinder, Methane, 1000 ppm in Air, 34L
81-0085RK-03	Cylinder, Methane, 1000 ppm Air, 103L
81-0089RK-03	Cylinder, CO 50 ppm / Hexane 15% LEL / O2 12 % in N2, 103L
81-0090RK-01	Cylinder, CO 50 ppm / Methane 50% LEL / O2 12 % in N2, 34L
81-0090RK-03	Cylinder, CO 50 ppm / Methane 50% LEL / O2 12 % in N2, 103L
81-0151RK-02	Cylinder, H2S 25 ppm in N2, 58AL
81-0154RK-02	Cylinder, H2S 25 ppm / CO 50 ppm / CH4 50% LEL / O2 12% in N2, 58AL
81-0154RK-04	Cylinder, H2S 25 ppm / CO 50 ppm / CH4 50% LEL / O2 12% in N2, 34AL
81-1054RK	Regulator, demand flow for 34AL/58AL/103L
81-1055RK	Regulator, demand flow for 17L/34L steel cylinders
81-0155RK-02	Cylinder, H2S 25 ppm / CO 50 ppm / HEX 15% LEL / O2 12% in N2, 58AL
82-6050RK	USB Hub, 4 port 2.0 for SDM-2012
82-6051RK	USB Hub, 7 port 2.0 for SDM-2012
71-8007RK	SDM-GX Product CD

Specifications subject to change without notice.

Download

SDM-2012 Software
SDM-2012 Standalone Configuration Software 53MB version 05446	SDM-2012 PC Controlled Software 30MB version 05743	Notice: SDM-GX update for use with Windows 11	Noncompliance Dashboard 42.5MB version 1.0.2
SDM-2012 Standalone Configuration Manual 900KB	SDM-2012 PC Controlled Configuration manual 6MB	Windows 11 Driver Update Instructions	RKI Noncompliance Dashboard 2.4MB
SDM-2012 Literature
SDM-2012 Datatsheet	SDM-2012 User Guide
SDM-2012 Manuals
SDM-2012 Calibration Station Standalone Configuration Manual	SDM-2012 PC Controlled Configuration Manual
