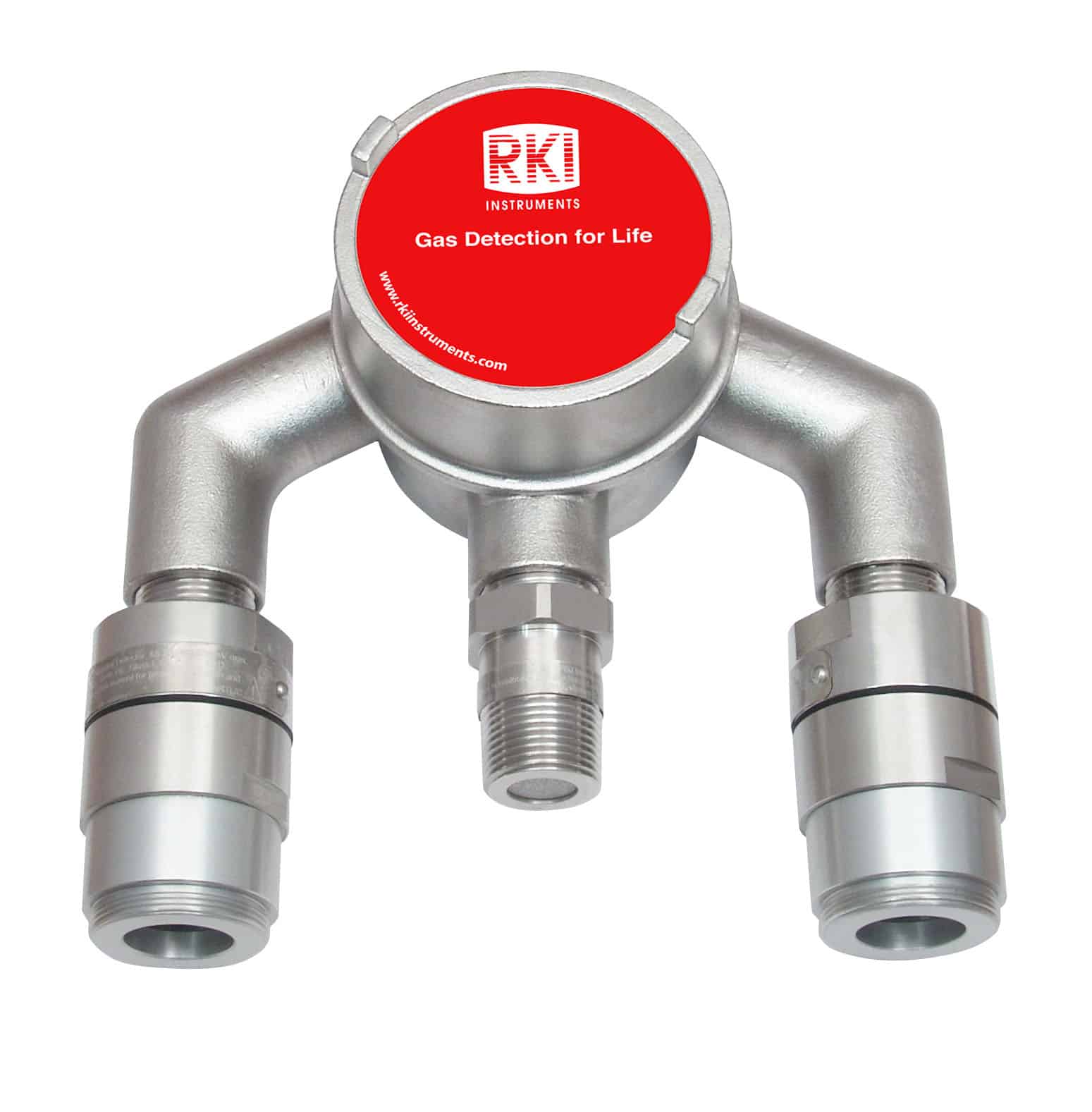

Explosion Proof Tri-Sensor Head

Features

  • 3 Sensors, 1 explosion proof housing
  • Infrared sensors available for combustible gases
  • Interfaces with Beacon 410 controller
  • Available for LEL, O2, H2S and CO
  • Water repellent patented sensor coating
  • Long life sensors (2 + years typical)
  • Also available with 2 or 4 sensors
Category:

Contact RKI Sales

Description

The RKI direct connect series gas sensors are highly reliable and very cost effective for the detection of common gas hazards. The direct connect series are available for LEL, Oxygen, H2S, and CO for a variety of RKI’s controllers. All sensors are explosion-proof with flame arrestors, and approved for use in hazardous locations.

The tri-sensor head can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Also, splash guards are available for use in very wet environments.

The unique tri-sensor design integrates 3 sensors into one explosion proof housing. This results in significant savings with installation and wiring cost versus traditional single sensor enclosures. Only one conduit needs to be run to the sensors.

The tri-sensor head is designed to exclusively interface with the RKI Beacon 410 controller. This 3 sensor head, used with the Beacon 410, is especially well suited for wastewater applications.

Also available in a two or four sensor version, with sensors for LEL, Oxygen, H2S, and CO available.

IR (infrared) sensor versions available for LEL detection.

Application

  • Wet Wells
  • Dry Wells
  • Bar Screen
  • Lift Station
  • Digesters
  • Thickeners
  • Primary Clarifiers
  • Pump Stations
  • Confined Spaces

Specifications

LEL O2 CO H2S
Sensor Only
61-0140RK
(UL)
61-0140RK-05
(CSA)
NC-6234-01
LEL H2
65-2511RK
(non xp)
65-2514RK
(xp)
65-2433RK-05
65-2423RK-05
Measuring Range
0-100% LEL
0-25% Vol.
0-300 ppm
0-100 ppm
Response Time
LEL – 30 seconds
LEL H2 –
20 seconds
20 seconds
35 seconds
Operating Environment
Location
Indoor or outdoor. Explosion proof (optional for O2) for Class I, Div. 1, Groups B, C, and D atmospheres.
Temperature
-40 to 185° F
-4 ~ 113° F
Humidity
0-99% RH, non condensing
Housing
Housing J-Box
 Cast aluminum, explosion-proof, epoxy coated
Sensor
Stainless steel
Stainless steel (xp) Plastic
(non xp)
Stainless steel
Sensor
Type
Catalytic
Galvanic cell
Electrochemical
Life Expectancy
1 to 2 years with
normal intermittent
exposure to
flammable gas.
LEL H2 version:
3 years with
normal intermittent
exposure to H2
2 years normal
service
2 to 3 years normal service
Controllers
Compatible with the following controllers: Beacon 110, Beacon 200, and Beacon 410
Approvals
 UL or CSA CSA NRTL (optional for O2)
Warranty
 One year materials and workmanship
Ordering Info
Part Number
65-2480RK-01
65-2480RK-03
65-2481RK
Description
LEL cat./O2 /H2S
LEL catalytic/H2S
LEL cat./O2/H2S/CO

Note: Additional gas combinations and
CSA
versions available, please contact factory.
IR Infrared
CH4 HC
Sensor Only
61-0190RK-CH4
61-0190RK-HC
Measuring Range
0-100% LEL
Response Time
30 seconds
Operating Environment
Location
Indoor or outdoor. Explosion proof (optional for O2) for Class I, Div. 1, Groups B, C, and D atmospheres.
Temperature
-4 ~ 122° F
Humidity
0-99% RH, non condensing
Housing
Housing J-Box
 Cast aluminum, explosion-proof, epoxy coated
Sensor
Stainless steel
Sensor
Type
Infrared
Life Expectancy
5+ years normal service
Controllers
Compatible with the following controllers: Beacon 110, Beacon 200, and Beacon 410
Approvals
 UL
Warranty
 One year materials and workmanship
Ordering Info
Part Number
65-2482RK-01 LEL

65-2483RK-01 LEL

65-2481RK-01 LEL
Description
(IR-CH4) / O2 / H2S
(IR-HC) / O2 / H2S
(IR) / O2 / H2S / CO

Note: Additional gas combinations and
CSA
versions available, please contact factory.


* Specifications subject to change without notice.
Made in the USA
