Learn more about the Model AC-2 provided by RKI Instruments.

Model AC-2 Photoelectron Spectroscopy

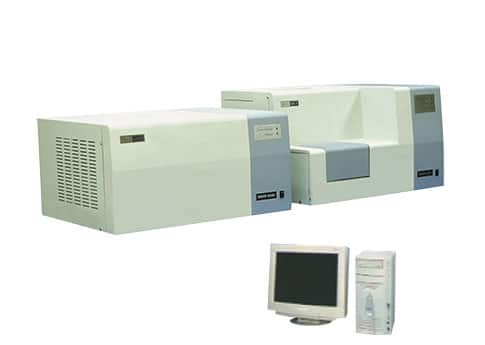

Photoelectron Spectrometer, manufactured by Riken Keiki

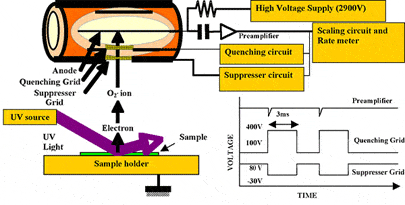

Photoelectron Spectrometer, manufactured by Riken Keiki diagram
Photoelectron Spectrometer, manufactured by Riken Keiki flow

Photoelectron Spectrometer, manufactured by Riken Keiki

Features

  • Atmospheric pressure operation (unique in the world)
  • Estimate work function, ionization potential, density of states (DOS)
  • Measure thickness of thin films on the material surface (less than 20 nano-meters)
  • Energy selectable UV source
  • Low photo – excitation energy (3.40 – 6.20eV)
  • Compact desktop type
  • Easy sample introduction and removal
  • Full computer control
Contact Sales

Overview

The Model AC-2 is an instrument for Photoelectron Spectroscopy at atmospheric pressure that is an open counter equipped with an UV source.

The open counter is a unique electron detector, which can be operated in open air, and has been used for photoelectron spectroscopy in the air (PESA). By combining the open counter with an UV source, the AC-2 PESA instrument opens the way to a new dimension in surface analysis.

The model AC-2 has been developed from proven technology and incorporates the latest in digital control electronics producing an easy to use, flexible system suitable for all levels of expertise.

AC-2 Datasheet PDF

Ordering Info

Ordering

Please contact Bob Pellissier at
