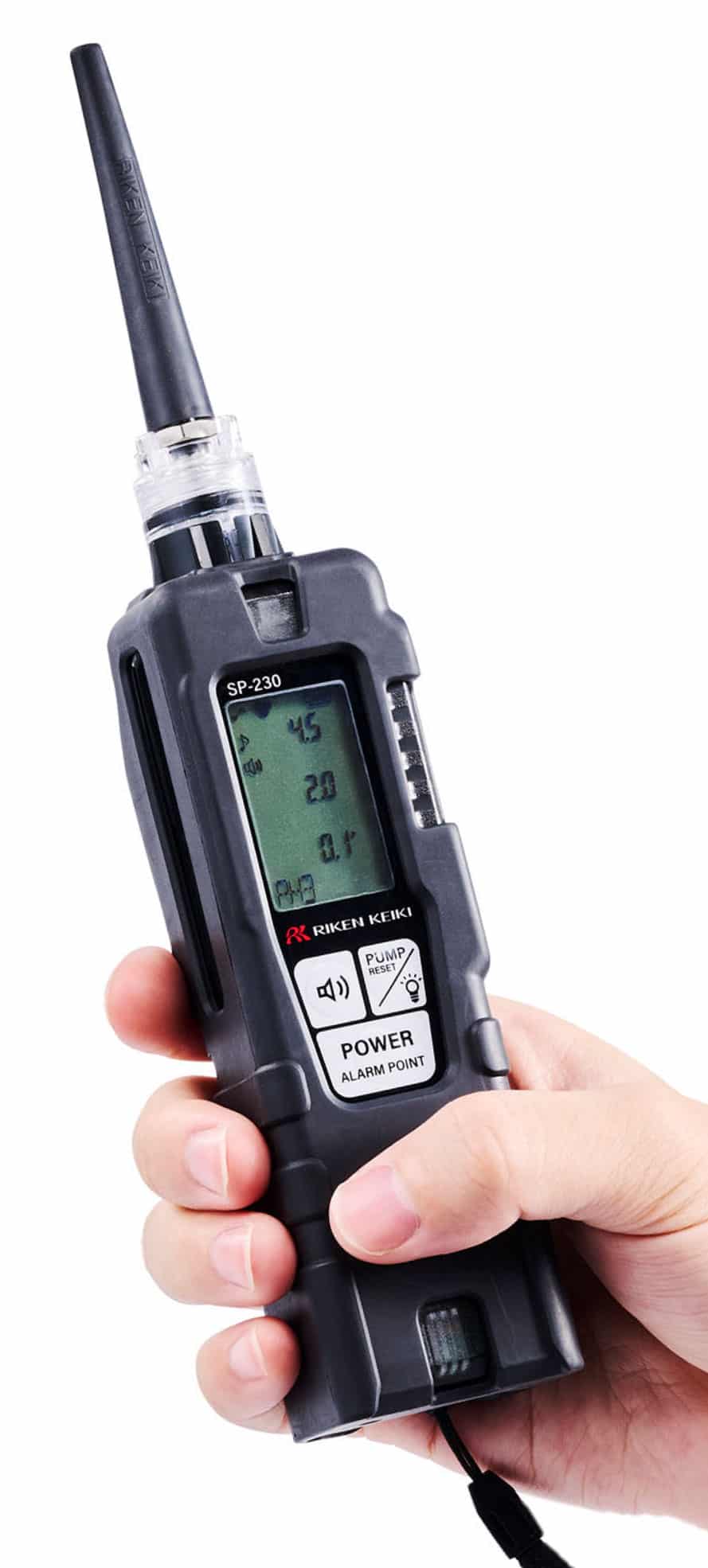

SP-230 Gas Leak Checker

  • 2 Versions Available
    • SP-230 TYPE FUM for fumigation gas
    • SP-230 TYPE SC for semiconductor gas
  • Easy to recognize by LED
    Newly equipped with LED, it informs the user of alarm points, gas concentration, and operating status by color and scale.
  • Enhanced functions allow for work in dark places
    LED light illuminating the front. The backlit buttons for easy operation.
  • One-push access to multiple functions
    Frequently used operations such as LED light ON/OFF, alarm/operation sound ON/OFF, and alarm point switching can be operated with single push.
  • Reliable assign for use even in harsh environments
    Pass 2m drop testing ○Protection rating equivalent to IP67
    Usable across a wide range of temperature (-20℃ to +55℃)
  • Allows direct readout of 50 type of different gases
Contact Sales

Overview

The model SP-230 is RKI’s latest product offering for leak detection of combustible, toxic, freon and fumigation gases. The SP-230’s rugged, light weight design and fast response time plus ease of operation will make pinpointing hard-to-find, low concentration gas leaks a simple procedure.

The SP-230 type SC version uses a hot-wire semiconductor sensor (MOS) that can detect a range of target gases including PH3, CH4, H2, HCL, HBr and NH3. The SP-230 type FUM version also uses the same MOS sensor and can detect fumigation gases including phosphine, methyl bromide, carbon disulfide, methyl iodide, hydrogen cyanide,  sulfuryl fluoride and ethylene dibromide.

An integral pump, LCD display with backlight, molded rubber cover, LED light and weather protection (IP-67 rating) are some of the unique features of the SP-230. Snap logging features allow for accurate record keeping and testing accountability (Up to 256 data items can be recorded, and when the maximum number of items is reached, the oldest data is overwritten by new data).

Specifications

Model SP-220 TYPE FUM
(Fumigation)
SP-220 TYPE SC
(Toxic, Combustible, CFC)
Target gas Refer to the gas list below
Detection principle Hot-wire semiconductor method (MOS)
Measuring range Depends on target gas
Accuracy Displays 0.1 ppm-bar when 0.3 ppm PH3 applied.
Alarm set point Depends on target gas
Alarm pattern Gas alarm : Gas concentration reached or over the setting point. Trouble alarm: Sensor connection / breaking, Low battery, Low flow

Circuit error, Calibration error

Alarm method Non-latching
Display of alarm Operating status icon, flow confirmation icon, operation tone icon, alarm sound icons, alarm setpoint display, battery level icon, bar meter display, mode display, gas name/message display
Sampling method Sample draw
Response time 10 sec.: Time to reach 0.1 ppm when 0.3 ppm PH3 applied.
Output signal IrDA
Display device LCD
Display contents Gas name, Gas concentration, Time, Battery, Pilot indicator, Pump display indicator, Sound
Power source 2 AA Alkaline batteries
Continuous operation 13 hours or more (25℃, no alarm, no lighting)
Operating temp. & humidity -4°F~+131°F (-20~+55°C), 0~95%RH (Non-condensing)
Dimension & weight 7.87”(H) x 1.69”(D) x 1.85”(W) (41 × 186 × 38 mm) excluding projections 7.7oz (220 g)
Ingress rating IP-67
Function Manual LCD backlight (Automatically ON when alarming), Peak value, Snap logging, Time, Cal alarm
Standard accessories Hand strap, Rubber cover, Tapered nozzle
Gas Sensor Options C2H4Br2, CH3Br, CH3I, CS2, HCN, PH3, SO2F2 AsH3, B2H6, C2H2, C2H2CL2, C2H4, C2H5OH, C2HCL3, C3H6O, C3H8, C4F6, C6H6, C7H8, C8H10, CH2C2F4, CH2CL2, CH3Br, CH3CL, CH3OH, CH4, CO, COS, D2, EDC, EO, GeH4, H2, H2S, H2Se, HBr, HCHO, HCL, i-C4H10, IPA, MEK, n-C6H14, NH3, PH3, PO, R-134a, R-22, R-245FA, R-32, R-404A, R-407C, R-41, R-410A, SiH4, SO2, tC3H2F4, VCM
