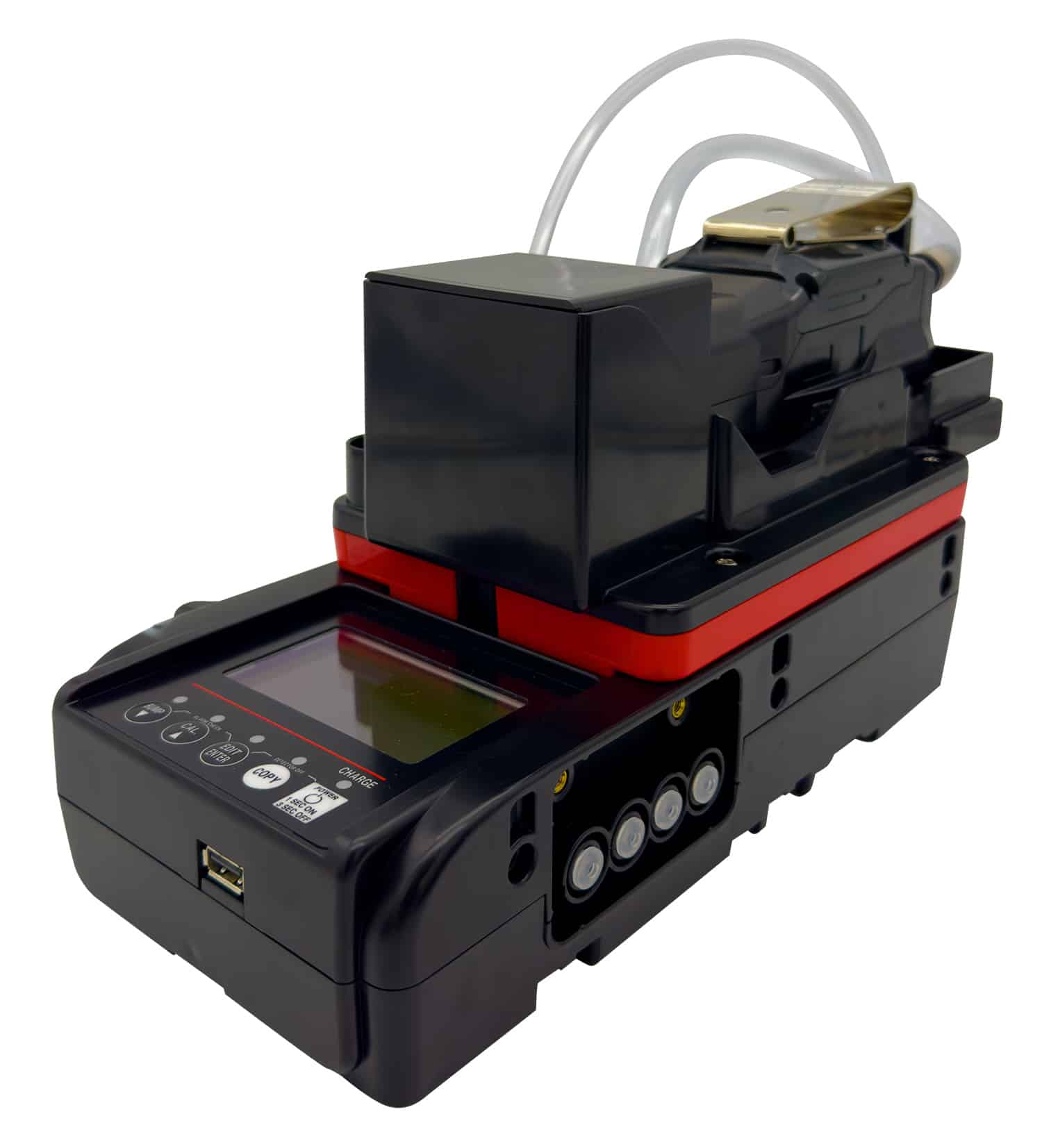

Name: SDM-6100 Calibration Station
Brand: RKI Instruments

Features

Stand Alone Station

Charging (Lithium-Ion Battery)

Calibration

Bump Test

3 Calibration gas ports

Save Bump Test and Calibration records

Bump Test and Calibration records copy to USB Jump Drive

Multi Module System

Includes PC software for viewing/archiving bump test and calibration records

Archiving data to network location
Software controlled data retrieval
Automatic calibration / bump test option

Multiple connected to a PC (10 max)

Configure GX-6100

Overview

Stand Alone Station

The SDM-6100 is a versatile maintenance tool that automates the service of a GX-6100 portable gas monitor. This docking station can be used as a stand alone device for charging, calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive or LAN import (PC software and flash drive included).

PC-Controlled System

The SDM-6100 can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from GX-6100 instruments. Up to ten SDM-6100 docking stations can be connected simultaneously using USB cables.
The SDM-6100 includes connections for one to three calibration gas cylinders.

Multi Module System

Charging (Lithium-Ion Battery)
Multiple connected to a PC (10 max)
Charging
Calibration
Bump Test
Configure GX-6100
3 Calibration gas ports
Save Bump Test and Calibration records
Bump Test and Calibration records copy to USB Jump Drive
Includes PC software for viewing/archiving bump test and calibration records
- Archiving data to network location
- Software controlled data retrieval
- Automatic calibration / bump test option

Specifications

Input Power	Main unit input: 5.0 VDC Accessory AC adapter input: 100-240 VAC
Operating Temperature	0 to 40 ° C (no sudden fluctuations)
LCD Display	LCD Digital (full dot)
Applicable Instruments	GX-6100
Memory capacity	Up to 500 bump tests, calibrations, or alarm checks

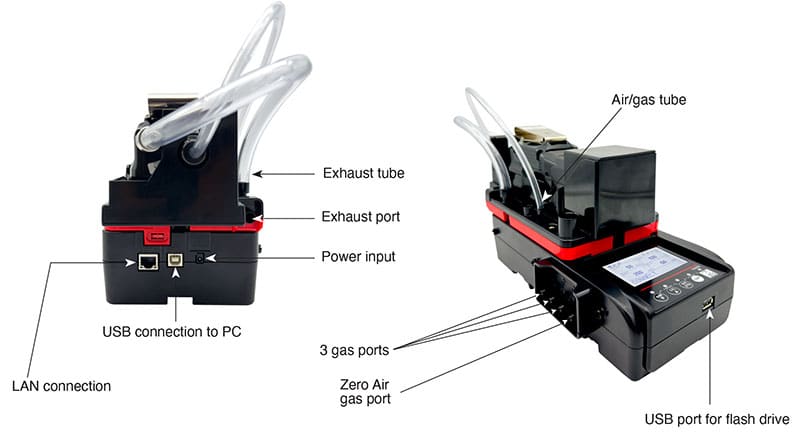

Data Output	• Ethernet port • USB-B to PC • USB for flash drive • IRDA for instrument communication
Number of Calibration Gas Cylinders	Up to three calibration gas cylinders
Standard Accessories	• Air Filter • AC Adapter • Exhaust tubing • Flash drive • USB-A to USB-B cable • LAN cable

Ordering Information

81-SDM6100-01	SDM-6100 calibration station with filter, AC adapter, 10’ exhaust tubing, USB drive, USB & LAN cables
81-SDM6100-03	SDM-6100 calibration station with particle filter, AC adapter, 10’ exhaust tubing, USB drive, USB & LAN cables, demand flow regulator, and cal gas tubing
81-SDM6100-04	SDM-6100 calibration station with particle filter, AC adapter, 10’ exhaust tubing, USB drive, USB & LAN cables, demand flow regulator, cal gas tubing, 58AL cyl H2S/CO/CH4/O2, and cylinder holder
81-SDM6100-06	SDM-6100 calibration station with particle filter, AC adapter, 10’ exhaust tubing, USB drive, USB & LAN cables, demand flow regulator, cal gas tubing, 34AL isobutylene/air, and cylinder holder
81-SDM6100-07	SDM-6100 calibration stations with particle filter, AC adapter, 10’ exhaust tubing, USB drive, USB & LAN cables, demand flow regulator, cal gas tubing, 34L cyl H2S/CO/CH4/O2, and cylinder holder
