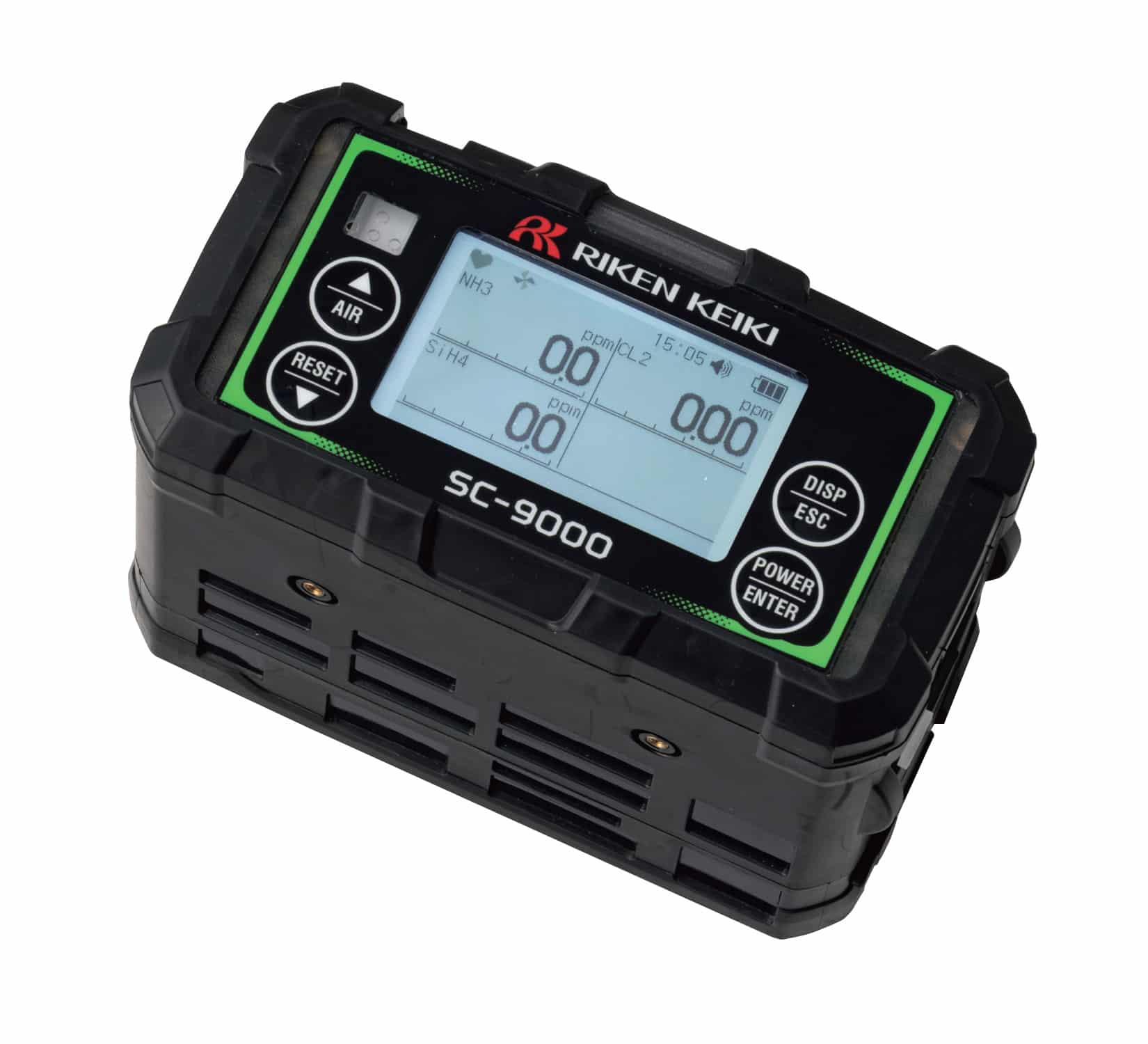

Name: SC-9000 Toxic Gas Detector
Brand: RKI Instruments

Toxic Gas Monitor

Features

Simultaneous detection of up to 3 different toxic gases

Up to 3-year gas sensor warranty

Detect NH3, HF, Cl2, HCl, O3, SiH4, or PH3

Outstanding durability: Passes 1.5 m drop testing, equivalent to IP66/68 protection rating
Bluetooth® equipped

Inherently safe explosion-proof construction allows use in explosion-proof areas

Continuous operating time: Approx. 60 hours

Overview

The SC-9000 sets the new industry standard for rugged, reliable portable toxic gas detection. Featuring a compact, lightweight, durable, waterproof, and intrinsically safe design, the SC-9000 accurately detects gas leaks in toxic gas detection applications.

Applications

Semiconductor, LED, Solar Cell plants
Petrochemical, Chemical Plants
Medical, Pharmaceutical, Food Industry H2O2 Disinfection
Refineries
Gas plant, Gas supplier services
Chemical tanker
Confined space
Utlilities
Monitoring toxic gas in hazardous zone
Leak check at maintenance work

Gases & Detectable Ranges

Gas	Measuring Range	Resolution
Ammonia (NH3)	0 – 75.0 ppm	0.5 ppm
Chlorine (Cl2)	0 – 1.50 ppm	0.01 ppm
Hydrogen Chloride (HCl)	0 – 6.00 ppm	0.05 ppm
Hydrogen Fluoride (HF)	0 – 3.00 ppm	0.01 ppm
Nitrogen Dioxide (NO2)	0 – 15.0 ppm	0.1 ppm
Nitrogen Monoxide (NO)	0 – 100 ppm	1 ppm
Ozone (O3)	0 – 1.00 ppm	0.005 ppm
Phosphine (PH3)	0 – 1.00 ppm	0.01 ppm
Silane (SiH4)	0 – 15 ppm	15.0 ppm

Specifications

Specifications
Sensor Type	Electrochemical
Alarm Types	Gas Alarm: Latching, 2 alarm Failure Alarm: Flow failure, sensor failure, battery failure, circuit failure, calibration failure, setting current failure
Alarm Display	Lamp: LED’s flash Buzzer: Alternating high and low pitch (gas alarm), Continuous sound (failure alarm) Display: Gas concentration on the display flashes (gas alarm), Alarm message on display flashing (failure alarm)
Audible Alarm	95dbB (A) at 30cm
Sampling Method	Sample Draw, approx. 0.5L/min
Display	Digital LCD with (full dot)
Power Source	Lithium-ion battery (3 hours charge time) AA Alkaline battery (3 pcs)
Continuous Operation	Lithium-ion battery: 60 hours AA Alkaline battery: 30 hours
Temp/Humidity	-20 ~50ºC, Humidity 20~90% RH (without condensing)
Size	158(w) x 85(h) x 132(d)mm, weight: approx. 1.1kg
Ingress Proof Rating	IP-66/68
Explosion Proof	Intrinsically safe; Exia IIC T4 Ga
Approvals	ATEX: II 1 G Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga
Additional Features	Self diagnosis system Zero/Span adustment (deman zero/auto zero selectable) Indication to show energizing (pilot indicator and pump driving indicator) IrDA communication, Data logger (interval, alarm trend, station ID control) Peak value/Average value display, buzzer selector switch (2 steps high/low) Bump test function

Download

SC-9000 Software
SC-9000 Datalogging

Literature & Manuals
SC-9000 Datasheet	SC-9000 Operator’s Manual	SC-9000 Data Logger Management Program Manual
