GX-3R with TIIS Approval (now available)

Confined Space 4 Gas Monitor

Features

  • Smallest & lightest 4 gas monitor
  • Simultaneous detection of 4 gases; LEL, O2, H2S & CO
  • H2 Compensated CO sensor available
  • Simple 2-button operation
  • Alarms: audible, visual, & vibration
  • 3 user adjustable alarm levels
  • 25 hours of operation (Lithium-ion battery)
  • Water and dust resistant design, IP66/68
  • 3 Year warranty
  • TIIS Safety Approval
Contact Sales

Overview

The GX-3R is the worlds smallest 4 gas monitor weighing only 3.52 ounces and can comfortably be clipped within a worker’s breathing zone (2.2” W x 2.55” H x 1.02” D). It simultaneously monitors and displays LEL combustibles, O2, CO (Hydrogen compensated CO also available), and H2S.

The GX-3R represents the latest evolution of gas detection technology utilizing a new generation of micro sensors. The LEL sensor has a unique design with two active filaments in one sensor to increase it’s resistance to silicone poisoning. If one filament gets poisoned the second filament takes over. The new O2 sensor is electrochemical with a 3 to 5 year life span.  H2S and CO are now available in a combo micro sensor.

Safety supervisors will appreciate the non-compliance indicator. The instrument flashes it’s 3 LED lights every 30 seconds in the following conditions; if the instrument has not been bump tested, or if calibration is due, or if there was a gas alarm event. The 3 LED lights will continue to flash once every 30 seconds until the non-compliance condition has been resolved. The 30 second interval is adjustable.

GX-3R callouts

OSHA defines the breathing zone as a ten inch radius around the worker’s nose and mouth, and requires that worker exposure monitoring air samples be collected in the breathing zone. Air sampling filters may be attached to the collar or lapel.  Traditionally this means only a single gas monitor would be small enough for a worker to practically wear a gas monitor ‘In the breathing zone’. Now there is a 4 gas monitor smaller than many single gas monitors.

FAQ about TIIS vs ATEX/CSA certification PDF Download Link

FAQ about TIIS vs ATEX/CSA certification

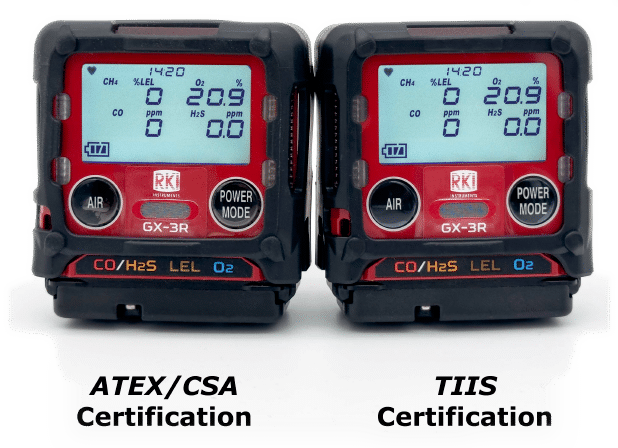

Are there differences in product specifications between the ATEX/CSA and TIIS versions of the GX-3R?
No. Both versions are identical in every aspect except for the certification labels.

Is TIIS intrinsically safe for Class 1, Division 1 explosion proof environments?
Yes. The TIIS-certified GX-3R & GX-3R Pro are subjected to the same IEC safety standards as the ATEX/CSA GX-3R & GX-3R Pro.

Can I use a TIIS certified GX-3R in North America?
Yes. The TIIS versions are identical to the ATEX/CSA versions in every aspect and pass the same safety standards for the certification labels as the ATEX/CSA.

Why do I have to submit the Acknowledgement Form?
It is solely for RKI’s internal records that the end user acknowledges their new order is the GX-3R with the TIIS certification. The Acknowledgement Form is not a waiver or release form. Link to Acknowledgement Form

If I accept the Acknowledgement Form, am I liable in some way?
No. If there are any product failures on the GX-3R with TIIS certification, RKI takes full responsibility just as it would with the CSA versions. The GX-3R with TIIS certification is covered under warranty just like any of RKI’s other product lines. Link to Acknowledgement Form

Are the part numbers different?
The part # are the same as the existing GX-3R part numbers and just have a “-T” added to the end.

For example:
72-RA-C is the part number for a 4-gas GX-3R (ATEX/CSA) with Li-Ion battery pack.
72-RA-C-T would be the part number for the 4-gas GX-3R (TIIS) with Li-Ion battery pack.

Are the prices the same?
Yes.

How soon can the GX-3R with TIIS certification be shipped?
Once you have completed the acknowledgement form and requested your order change with customer service, you will receive a confirmation email with your new scheduled ship date within the day.

Can I revise my current GX-3R (ATEX/CSA) order to the TIIS version?
Yes, absolutely. Contact RKI’s customer service with the purchase order number you would like to revise and customer service will send a confirming email with the new ship date.

Does OSHA approve the TIIS certification?
No, but they do not approve the ATEX/CSA certification either. OSHA does not approve any Intrinsically safe certification body. They simply recommend the use of an instrument which has a third-party verification performed.

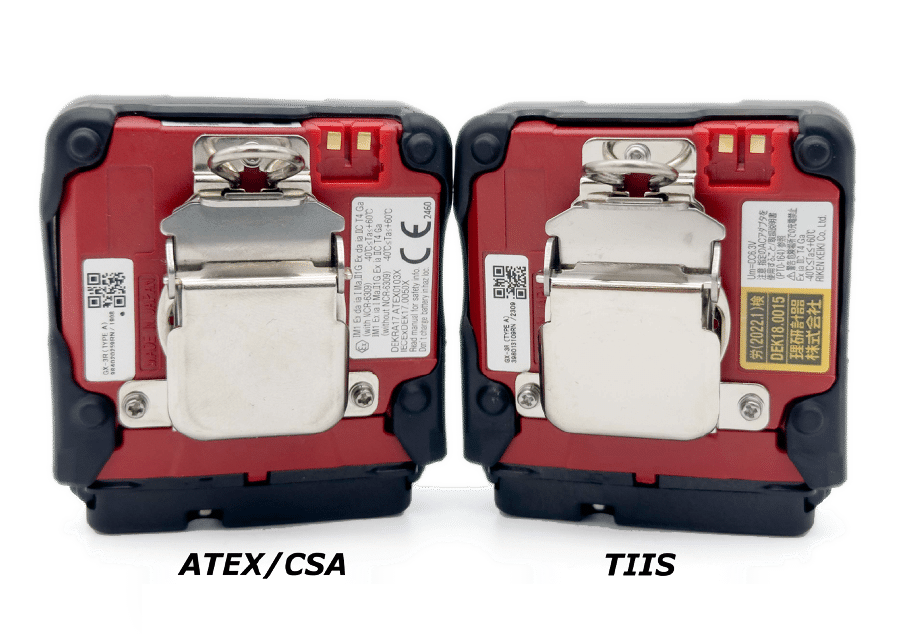

Can I use the label from an older GX-3R and put it on the TIIS approved GX-3R?
No. The certification labels can only be applied by the manufacturer.

Are TIIS versions of the GX-3R in English?
Yes. The TIIS and CSA/ATEX versions are identical in every aspect except for the certification labels.

When will the hold on the ATEX/CSA certification end?
The hold is expected to be released in January or 2024.



Application

  • Personal monitoring
  • Confined spaces
  • Refineries/petrochemical
  • Utilities
  • Oil and Gas
  • Water/Wastewater
  • Fire Services
  • Construction

Specifications

Gas Detected

(CO)
H2 Compensated

Carbon Monoxide(CO) Hydrogen Sulfide(H2S) H2S
Only

Combustible Gases
(Methane as standard)

Oxygen

Dual Sensor

Sensor Slot

1

2
3

Detection
Principle

EC Dual EC EC

Catalytic combustion

EC
Detection Range
(Increments)

0 ~ 2,000 ppm
(1 ppm)

0 ~ 200.0 ppm
(0.1 ppm)

0 ~ 100% LEL
(1% LEL)

0 ~ 40% Vol. (0.1%)
Accuracy
Statement

± 5% of reading
or ± 2 ppm CO

± 5% of reading
or ± 5 ppm CO
(whichever is greater)
± 5% of reading
or ± 2 ppm H2S
(whichever is greater)

± 5% of reading
or ± 2% LEL
(whichever is greater)

± 0.5% of reading O2
Sampling Method

Diffusion sampling standard (hand aspirator or clip-on motorized pump optional)

Display

Digital LCD displays with 7 segment plus 14 segment plus icon

Preset Alarms
(User Adjustable)
Overscale alarm
(Non-adjustable)
1st alarm: 25.0 ppm
2nd alarm: 50.0 ppm
3rd alarm: 1200.0 ppm
TWA alarm: 25.0 ppm
STEL alarm: 200.0 ppm
Over alarm: 2000.0 ppm
1st alarm: 5.0 ppm
2nd alarm: 30.0 ppm
3rd alarm: 100.0 ppm
TWA alarm: 1.0 ppm
STEL alarm: 5.0 ppm
Over alarm: 200.0 ppm
1st alarm: 10% LEL
2nd alarm: 25% LEL
3rd alarm: 50% LEL
Over alarm: 100% LEL
Types of Alarms Gas Alarm: 3 Increasing alarms, STEL, TWA, overscale alarm. O2 decreasing/increasing.
Trouble alarm: Sensor disconnection, low battery, circuit error, calibration range error
Display of Alarm Gas Alarm: Flashing LEDs, continuous buzzer (100 db @ 30 cm), flashing gas value, vibration
Trouble alarm: Flashing LEDs, intermittent buzzer (95 db @ 30 cm), display of error message
Operating Temp.
& Humidity
-20°C ~ +50°C [ -4°F ~ +122°F ], 10 to 90% RH, non-condensing (continuous environment)
-40°C ~ +60°C [ -40°F ~ +140°F ], 0 to 95% RH, non-condensing (temporary environment, 15 minutes)
Response Time Within 30 seconds (T90)
Power Source Lithium-ion battery, Approx. 25 hours after a 3 hour full charge
Approvals  TIIS
Dimension
& Weight
2.2” W x 2.55” H x 1.02” D (Approx. 58 W x 65 H x 26 D mm), 3.52 ounces (approx. 100 g) without rubber booth
2.4” W x 2.63” H x 1.06” D (Approx. 61 W x 67 H x 27 D mm), 3.70 ounces (approx. 105 g) with rubber booth
Case Material Dust and water resistant to IP-66/68 (2m,1h) approval. Drop height 23 ft
Controls Two buttons: POWER / MODE, AIR
Datalogging Logs user ID, station ID, Calibration & Bump Test history, Alarm Events & Alarm Interval Trends
Standard
Accessories
Alligator clip, protective rubber boot, charger, and calibration adapter
Optional
Accessories
SDM-3R calibration station
RP-3R Clip-on sampling pump with 4” rubber nipple, 10’ hose and probe (up to 40’ hose available)
Padded carrying case for GX-3R and accessories
USB to IrDA downloading cable for datalogger
Warranty Three years material and workmanship

Parts

GX-3R Spare Parts

Part # Description
07-6057 Sensor gasket, GX-3R
07-6058 Sensor case o-ring, GX-3R
10-1086 Screw with flat and lock washers, M2 x 4 phillips
10-1087 Screw, GX-3R sensor cap & battery pack, 3/16 phillips
13-0112RK Wrist strap
13-0124 Alligator clip with installation screws
13-0125 Belt clip with installation screws
20-0332 Rubber boot for GX-3R
21-1950 LCD protective film for GX-3R/GX-3R Pro
21-1962 Bottom cover (sensor cap), GX-3R
21-1963 Sensor retainer, GX-3R
21-1967 Rear case assembly with Li-ion battery, GX-3R
21-1968 Front case with overlay, GX-3R
29-0715 Label, case sensor, CO, LEL, O2, GX-3R
33-0183 Sensor dust filter with internal gasket for GX-3R
33-0183-10 Sensor dust filters with internal gasket for GX-3R, 10-pack
33-0553 Buzzer protection cover for GX-3R
33-7130 Scrubber disk filter for H2S/CO sensor 5-pack
33-7131 Scrubber disk filter for LEL sensor, 5-pack
33-7132 Scrubber disk filter, charcoal, for CO & H2 comp CO sensor, GX-3R/GX-3R Pro, 5-pack
33-7133 Humidity filter disk for H2S sensor, GX-3R/GX-3R Pro, 5-pack
51-1142 LCD module with cable, for GX-3R
57-2098 Li-Ion battery with battery board
ESR-A1DP-COHS Sensor, H2S/CO combo for GX-3R/GX-3R Pro
NCR-6309 Sensor, LEL for GX-3R/GX-3R Pro
ESR-X13P-OXY Sensor, O2 for GX-3R/GX-3R Pro
ESR-A13I-H2S Sensor, H2S for GX-3R/GX-3R Pro
ESR-A13P-CO Sensor, CO, GX-3R/3R Pro
ESR-A1CP-CO-H Sensor, CO with H2 compensation for GX-3R/GX-3R Pro
