by Fmeaddons

  • Bar meter and digital multi-indication
  • High level of visibility
  • Low power consumption
  • Support RS-485 communication function
  • Global standard
  • Combatible with RM-570A/580 series
Categories: ,

Lookup your local U.S. sales rep.

Description

A multi-channel gas monitor system for monitoring combustible gases, oxygen, and toxic gases.

It can be used with existing multi/single cas of RM-570A / RM-580 series by use of connection case 5000-CC without new installation work. Also it is compatible as a replacement to use in existing facility expansion.

Application

  • LPG, LNG utlities
  • Refineries
  • Chemical plants
  • Semi-conductor manufacturing plants
  • Engineering, public works
  • Power station
  • Iron and steel works
  • Automotive plating processes

Display Indication

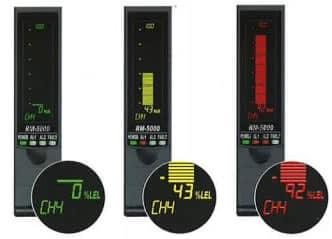

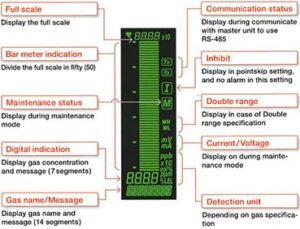

RM-5000 DisplayRM-5000 Alarm ColorsDisplay indicates gas concentration by two methods; bar meter and digital meter. LCD will change color depending on the concentration level so you can confirm detection condition from a distance.
RM-5000 color displays

Maximum of 32 points can be connected to use RS-485.

Specifications

RM-5000 Series
GP-5001
NC-5001
NC-5001W
NP-5001 SP-5001 GH-5001
Detection Gas
Combustible Combustible Inert Gases Combustible/Toxic
Indication
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors)
Type of acceptable detector head
Catalytic combustion new ceramic Thermal conductivity Special catalytic/semiconductor combination sensor semiconductor
Acceptable input signal
Direct sensor signal
Applicable cable
CVV-4C CVVS-4C CVV-4C CVVS-3C
Max distance
Max 2.0km
Output signal
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω
Alamr indication
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in
Trouble Alarm
Orange lamp flashing (fault), non-latching / content indication
Alarm relays
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive)
Operating condition
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing)
Power supply
24VDC
Power consumption
Max 7W
Dimensions & weight
Approx. 1.16w x 4.72h x 3.62d inches
Structure
Card type with front display enclosed in a case (a single-unit or multi-unit case)
RM-5000 Series
EC-5002 OX-5001 OX-5002 RM-5002 RM-5003
Detection Gas
Toxic Oxygen Combustible, Toxic, Oxygen
Indication
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors)
Type of acceptable detector head
Electrochemical cell Galvanic cell 4-20mA outputs
2-wire type 3-wire type
Acceptable input signal
4-20mA output Direct Sensor 4-20mA output
Applicable cable
CVVS-2C CVVS-3C
Max distance
Max 2.0km Max 600m Max 2.0km Depending on the detector
Output signal
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω
Alamr indication
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in
Trouble Alarm
Orange lamp flashing (fault), non-latching / content indication
Alarm relays
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive)
Operating condition
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing)
Power supply
24VDC
Power consumption
Max 3W Max 2W Max 3W Max 2W Max 8W
Dimensions & weight
Approx. 1.16w x 4.72h x 3.62d inches
Structure
Card type with front display enclosed in a case (a single-unit or multi-unit case)
